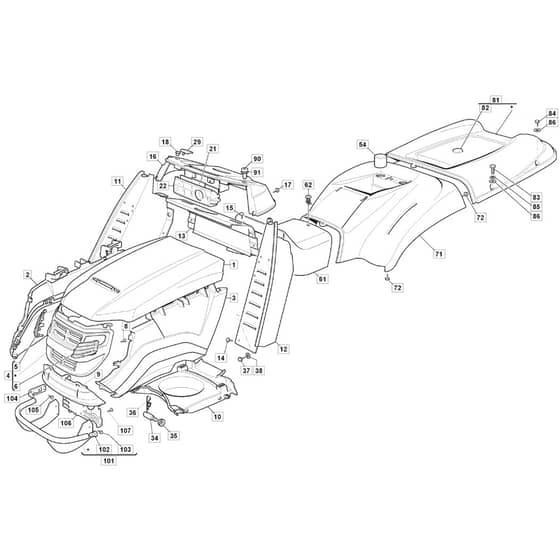

1736H Twin - 2022-2023 - 2T0785483/M22 - Mountfield Ride On Mower Body Diagram

Description

Mountfield 1736H Twin Parts Diagram

Product Name - 1736H Twin

Model Year - 2022-2023

Model Type - TCS 92 Hydro

Art.N - 2T0785483/M22

Engine Model - ST 600 Twin Powered by STIGA

	Part No.	Details
1	MO325076977/1 Available to backorder	Upper Engine Hood Red	£114.74 £95.62
2	MO382394653/1 Available to backorder	Hood. Right Dark Red	£82.37 £68.64
3	MO382394654/1 Available to backorder	Hood. Left Dark Red	£95.74 £79.78
4	MO382394613/0 Available to backorder	Hood. Front	£80.58 £67.15
5	MO325410876/0 Available to backorder	Right Grill	£8.80 £7.33
6	MO325410877/0 Available to backorder	Left Grill	£8.80 £7.33
8	MO112735403/0 In stock	Screw	£1.55 £1.29
9	MO325076870/1 Available to backorder	Lower Black Hood. Front	£16.46 £13.72
10	MO325108031/0 Available to backorder	Conveyor	£56.32 £46.93
11	MO382785022/10 Available to backorder	Right Dashboard Support	£43.02 £35.85
12	MO382785021/9 Available to backorder	Left Dashboard Support	£43.02 £35.85
13	MO382785137/1 Available to backorder	Central Dashboard Support	£13.42 £11.18
14	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
16	MO325120275/1 Available to backorder	Black Dashboard	£46.48 £38.73
17	MO112728440/0 Available to backorder	Screw	£1.39 £1.16
18	MO125120200/0 Available to backorder	Cap	£1.39 £1.16
21	MO125600009/0 Available to backorder	Rear Card Protection	£15.76 £13.13
22	MO125600051/0 Available to backorder	Protection	£10.14 £8.45
29	MO125260000/0 Available to backorder	Grommet	£2.94 £2.45
34	MO125510169/1 Available to backorder	Pin	£2.40 £2.00
35	MO112293201/0 In stock	Nut	£1.70 £1.42
36	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
37	MO112731350/0 Available to backorder	Screw	£1.63 £1.36
38	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
54	MO325122000/2 Available to backorder	Cap	£1.63 £1.36
61	MO325110481/0 Available to backorder	Red Central Cover Dark Red	£30.70 £25.58
62	MO125580020/2 In stock	Stake	£8.29 £6.91
71	MO325109797/0 Available to backorder	Red Wheels Cover (Hydro) Dark Red	£121.07 £100.89
72	MO112735420/0 Available to backorder	Screw	£4.64 £3.87
81	MO382110302/0 Available to backorder	Red Grass-Catcher Cover Dark Red	£140.08 £116.73
83	MO112674701/0 Available to backorder	Screw	£1.55 £1.29
84	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
85	MO112582101/0 Available to backorder	Grower	£1.66 £1.38
86	MO112521331/0 Available to backorder	Washer	£1.55 £1.29
90	MO325605003/0 In stock	Push Button Reverse Gear	£30.77 £25.64
91	MO325256250/0 Available to backorder	Screwed Ring	£2.53 £2.11
101	MO382869025/0 Available to backorder	Muffler Protection	£125.30 £104.42
102	MO118737860/0 Available to backorder	Cap	£1.55 £1.29
103	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
104	MO325547159/1 Available to backorder	Plate	£4.64 £3.87
105	MO112731580/0 Available to backorder	Screw	£1.63 £1.36
106	MO325774301/2 Available to backorder	Engine Hood Support	£17.74 £14.78
107	MO112735406/0 Available to backorder	Flanged Hex-Head Screw 6 X 22	£1.63 £1.36
