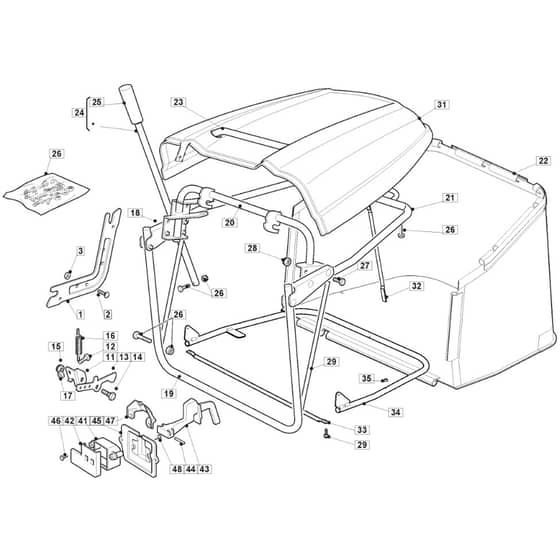

1736H Twin - 2020-2022 - 2T0440483/M20 - Mountfield Ride On Mower Grasscatcher Diagram

1736H Twin - 2020-2022 - 2T0440483/M20 - Mountfield Ride On Mower Grasscatcher Diagram
1736H Twin - 2020-2022 - 2T0440483/M20 - Mountfield Ride On Mower Grasscatcher Diagram

Description

Mountfield 1736H Twin Parts Diagram

Product Name - 1736H Twin

Model Year - 2020-2022

Model Type - NJS 92 Hydro

Art.N - 2T0440483/M20

Engine Model - ST 550 Twin Powered by STIGA

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Support MO325785275/0
Support
 Out of stock
£11.50 £9.58

  2 Screw From 01-9-2017 MO9897-0820-16
Screw From 01-9-2017
 Out of stock
£1.90 £1.58

  2 Screw To 31-8-2017 MO112818690/0
Screw To 31-8-2017
 Out of stock
£1.61 £1.34

  3 Nut MO112293201/0
Nut
 Out of stock
£1.63 £1.36

  11 Bracket MO325755031/2
Bracket
 Out of stock
£4.87 £4.06

  12 Screw MO112727796/0
Screw
 Out of stock
£1.49 £1.24

  13 Bracket MO325774315/1
Bracket
 Out of stock
£3.79 £3.16

  14 Pin MO125510080/2
Pin
 Out of stock
£1.36 £1.13

  15 Nut MO112292102/0
Nut
 In stock
£1.63 £1.36

  16 Spring MO122450432/0
Spring
 In stock
£1.90 £1.58

  17 Nut MO112154330/0
Nut
 Out of stock
£1.49 £1.24

  18 Bracket MO382774251/0
Bracket
 Out of stock
£7.72 £6.43

  19 Grasscatcher Frame MO382800099/0
Grasscatcher Frame
 Out of stock
£29.80 £24.83

  20 Grasscatcher Hooking Frame MO382800103/0
Grasscatcher Hooking Frame
 Out of stock
£75.85 £63.21

  21 Front Frame MO382800101/1
Front Frame
 Out of stock
£75.85 £63.21

  22 Grasscatcher Black without Logo MO182105921/0
Grasscatcher Black without Logo
 Out of stock
£162.53 £135.44

  23 Front Handle MO382394003/0
Front Handle
 Out of stock
£20.32 £16.93

  24 Rod MO382869023/0
Rod
 Out of stock
£32.51 £27.09

  25 Knob MO125394508/0
Knob
 Out of stock
£4.87 £4.06

  26 Screw Outfit MO382180138/0
Screw Outfit
 Out of stock
£16.93 £14.11

  27 Screw MO112815240/0
Screw
 Out of stock
£2.06 £1.72

  28 Nut MO112154510/0
Nut
 In stock
£1.63 £1.36

  29 Stiffening MO325650115/0
Stiffening
 Out of stock
£12.19 £10.16

  31 Red Grass-Catcher Cover Dark Red MO325110484/0
Red Grass-Catcher Cover Dark Red
 Out of stock
£102.25 £85.21

  32 Reinforcement Rod MO325033049/1
Reinforcement Rod
 Out of stock
£16.58 £13.82

  33 Lower Stiffening MO382650043/0
Lower Stiffening
 Out of stock
£19.98 £16.65

  34 Frame MO382800173/0
Frame
 Out of stock
£69.07 £57.56

  41 Grassc.Full Micro Protection Tcj-F MO125600041/0
Grassc.Full Micro Protection Tcj-F
 Out of stock
£3.77 £3.14

  42 Grasscatcher Micro Prot Cover MO125600042/0
Grasscatcher Micro Prot Cover
 Out of stock
£7.33 £6.11

  43 Full Grassc. Microswtich Cover MO125318124/0
Full Grassc. Microswtich Cover
 Out of stock
£1.90 £1.58

  44 Pin MO112400030/0
Pin
 Out of stock
£1.75 £1.46

  45 Micro Protection MO325785272/1
Micro Protection
 Out of stock
£2.04 £1.70

  46 Screw MO112728440/0
Screw
 Out of stock
£1.36 £1.13

  47 Empty Micro Grassc.Protection Cover MO125600048/0
Empty Micro Grassc.Protection Cover
 Out of stock
£1.49 £1.24

  48 Flanged Self-Tap Screw 4.8 X 13 MO112735110/0
Flanged Self-Tap Screw 4.8 X 13
 Out of stock
£1.49 £1.24


Description

Mountfield 1736H Twin Parts Diagram

Product Name - 1736H Twin

Model Year - 2020-2022

Model Type - NJS 92 Hydro

Art.N - 2T0440483/M20

Engine Model - ST 550 Twin Powered by STIGA
