Description

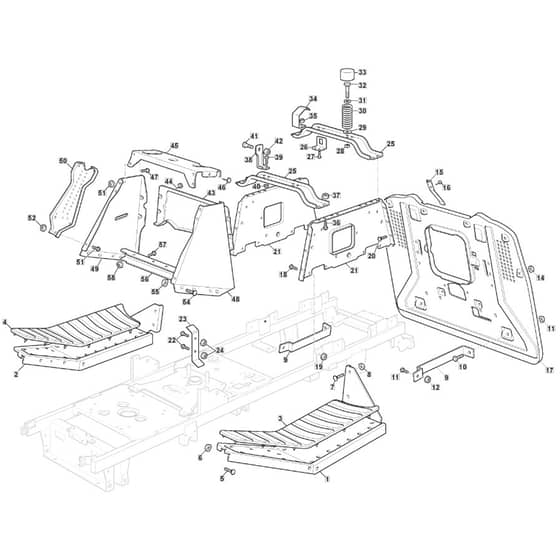

Mountfield 1736H Twin Parts Diagram

Product Name - 1736H Twin

Model Year - 2020-2022

Model Type - NJS 92 Hydro

Art.N - 2T0440483/M20

Engine Model - ST 550 Twin Powered by STIGA

Ref. Img. Part No. Details
  1 Left Footboard Support
Left Footboard Support
MO382510083/1 Out of stock
Left Footboard Support
£73.81 £61.51

  2 Right Footboard Support
Right Footboard Support
MO382510081/1 Out of stock
Right Footboard Support
£73.81 £61.51

  3 Left Footboard Cover
Left Footboard Cover
MO325110327/0 Out of stock
Left Footboard Cover
£17.47 £14.56

  4 Right Footboard Cover
Right Footboard Cover
MO325110326/0 Out of stock
Right Footboard Cover
£19.09 £15.91

  9 Plate Stiffening
Plate Stiffening
MO325650119/0 Out of stock
Plate Stiffening
£13.00 £10.83

  10 Screw
Screw
MO112792611/0 Out of stock
Screw
£1.49 £1.24

  11 Nut
Nut
MO112293201/0 In stock
Nut
£1.63 £1.36

  15 Spring
Spring
MO125430276/0 Out of stock
Spring
£4.87 £4.06

  16 Screw
Screw
MO112735110/0 Out of stock
Screw
£1.49 £1.24

  17 Plate
Plate
MO382547041/1 Out of stock
Plate
£98.87 £82.39

  18 Screw
Screw
MO112815200/0 In stock
Screw
£1.63 £1.36

  19 Nut
Nut
MO112292102/0 In stock
Nut
£1.63 £1.36

  21 Seat Support
Seat Support
MO325785249/0 Out of stock
Seat Support
£32.51 £27.09

  22 Screw
Screw
MO112793102/0 Out of stock
Screw
£1.63 £1.36

  23 Support
Support
MO325785499/0 Out of stock
Support
£5.82 £4.85

  25 Seat Support
Seat Support
MO382785309/0 Out of stock
Seat Support
£11.86 £9.88

  26 Bracket
Bracket
MO325755043/0 Out of stock
Bracket
£2.17 £1.81

  27 Screw
Screw
MO112727796/0 Out of stock
Screw
£1.49 £1.24

  28 Nut
Nut
MO112360425/0 Out of stock
Nut
£1.75 £1.46

  29 Washer
Washer
MO112523070/0 Out of stock
Washer
£1.49 £1.24

  30 Spring
Spring
MO125430257/1 Out of stock
Spring
£12.05 £10.04

  31 Washer
Washer
MO122671653/0 In stock
Washer
£1.63 £1.36

  32 Screw
Screw
MO112760515/0 Out of stock
Screw
£1.49 £1.24

  33 Cap
Cap
MO325122000/2 Out of stock
Cap
£1.49 £1.24

  34 Micro Seat Protect Spring
Micro Seat Protect Spring
MO325430253/0 Out of stock
Micro Seat Protect Spring
£5.02 £4.18

  35 Nut
Nut
MO112154330/0 Out of stock
Nut
£1.49 £1.24

  36 Screw
Screw
MO9897-0820-16 Out of stock
Screw
£1.90 £1.58

  38 Bracket
Bracket
MO325755039/0 Out of stock
Bracket
£5.28 £4.40

  41 Pin
Pin
MO122524970/3 Out of stock
Pin
£1.63 £1.36

  42 Nut
Nut
MO112155010/0 Out of stock
Nut
£2.04 £1.70

  43 Rear Dashboard Support
Rear Dashboard Support
MO382785151/2 Out of stock
Rear Dashboard Support
£16.19 £13.49

  45 Central Dashboard Support
Central Dashboard Support
MO325785255/0 Out of stock
Central Dashboard Support
£7.92 £6.60

  48 Left Dashboard Support
Left Dashboard Support
MO325785243/1 Out of stock
Left Dashboard Support
£28.44 £23.70

  49 Right Dashboard Support
Right Dashboard Support
MO325785245/0 Out of stock
Right Dashboard Support
£21.41 £17.84

  50 Front Dashboard Support
Front Dashboard Support
MO382785153/2 Out of stock
Front Dashboard Support
£14.70 £12.25

  56 Support
Support
MO325785241/0 Out of stock
Support
£6.84 £5.70

  57 Screw
Screw
MO112735120/0 Out of stock
Screw
£1.49 £1.24
