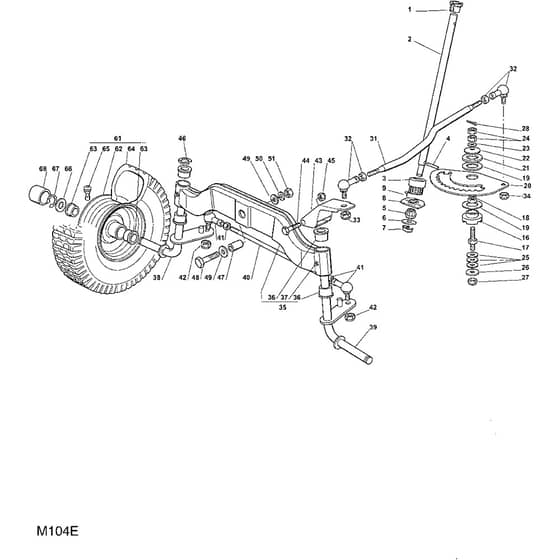

16H40H - 2007 - 13-2686-12 - Mountfield Ride On Mower Steering Diagram

Name: 16H40H - 2007 - 13-2686-12 - Mountfield Ride On Mower Steering Diagram
SKU: 16h40h_13_2686_12_steering-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

16H40H - 2007 - 13-2686-12 - Mountfield Ride On Mower Steering Diagram

Description

Mountfield 16H40H Parts Diagram

Product Name - 16H40H

Model Year - 2007

Model Type -

Art.N - 13-2686-12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325038004/0 Available to backorder	Bushing	£2.40 £2.00
2	MO125520005/0 Available to backorder	Steering Column	£28.01 £23.34
3	MO125570000/2 In stock	Pinion	Was £12.82 £10.68 Special Price £8.14 £6.78
4	MO112622650/0 Available to backorder	Dowel Pin	£1.69 £1.41
5	MO325743000/0 In stock	Joint	£2.68 £2.23
6	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
7	MO112436030/0 In stock	Plate	£1.82 £1.52
9	MO112729601/1 Available to backorder	Screw	£1.48 £1.23
16	MO125040617/0 Available to backorder	Bushing	£10.70 £8.92
17	MO125510065/3 Available to backorder	Pin	£10.31 £8.59
19	MO325670012/0 Available to backorder	Washer	£2.40 £2.00
20	MO325735507/0 Available to backorder	Steering Sector	£69.70 £58.08
21	MO325670014/1 Available to backorder	Washer	£4.45 £3.71
22	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
23	MO112521360/0 In stock	Washer	£1.55 £1.29
24	MO112295200/0 In stock	Nut	£1.40 £1.17
25	MO322672150/0 Available to backorder	Antifriction Washer	£1.82 £1.52
26	MO112523080/0 In stock	Washer	£1.55 £1.29
28	MO112141418/0 Available to backorder	Cotter Pin	£1.55 £1.29
31	MO125033003/1 Available to backorder	Steering Rod	£39.42 £32.85
35	MO382034001/3 Available to backorder	Equalizer With Bush And Lubricator Pos 36 - 37 incl.	£175.97 £146.64
36	MO125034002/1 Available to backorder	Bushing	£3.79 £3.16
37	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
38	MO382230361/1 Available to backorder	Right Stub Axle	£38.00 £31.67
39	MO382230359/1 Available to backorder	Left Stub Axle	£43.64 £36.37
40	MO325840001/1 Available to backorder	Tie Rod	£14.80 £12.33
42	MO112156602/0 In stock	Nut	£1.40 £1.17
43	MO382318185/0 Available to backorder	Lever Ass.Y	£24.36 £20.30
44	MO112692395/0 Available to backorder	Screw	£2.94 £2.45
45	MO112155000/0 In stock	Nut	£1.55 £1.29
47	MO125160005/1 Available to backorder	Spacer	£5.35 £4.46
48	MO112694100/0 Available to backorder	Screw	£4.08 £3.40
49	MO112521390/0 Available to backorder	Washer	£1.82 £1.52
50	MO112587900/0 Available to backorder	Grower	£1.55 £1.29
51	MO112295800/0 Available to backorder	Nut	£1.82 £1.52
61	MO382680007/1 Available to backorder	Front Wheel Pos 62 - 65 incl.	£128.10 £106.75
62	MO182000595/1 Available to backorder	Rim	£62.38 £51.98
63	MO125122200/2 In stock	Bearing	£11.82 £9.85
64	MO125590020/0 Available to backorder	Tyre 15X6.00-6 2Pr K383 (Kenda) Kenda	£66.37 £55.31
65	MO125950000/0 Available to backorder	Valve	£5.35 £4.46
66	MO125670005/2 In stock	Washer	£4.08 £3.40
67	MO112001000/0 Available to backorder	Circlip Ø15	£1.82 £1.52
68	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
