16H40H - 2007 - 13-2686-12 - Mountfield Ride On Mower Honda Engine Diagram

Description

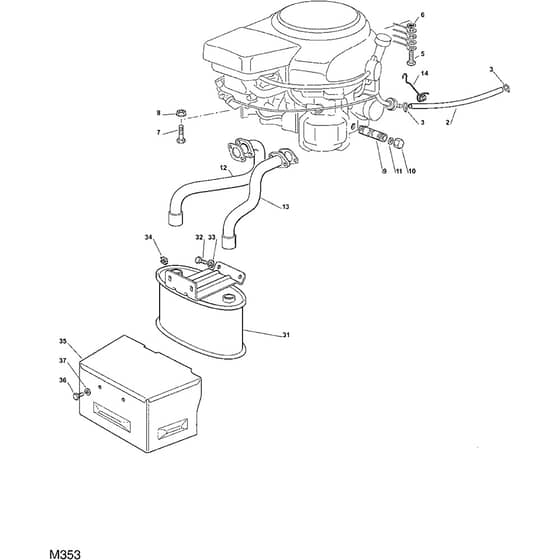

Mountfield 16H40H Parts Diagram

Product Name - 16H40H

Model Year - 2007

Model Type -

Art.N - 13-2686-12

Engine Model -

	Part No.	Details
1	MO425869027/0 Available to backorder	Connecting Tube	£6.46 £5.38
3	MO118375062/0 Available to backorder	Fair Led	£1.92 £1.60
5	MO112735599/0 In stock	Screw	£1.55 £1.29
7	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
8	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
9	MO125598052/0 Available to backorder	Oil Discharge Extension	£19.36 £16.13
10	MO118737849/0 Available to backorder	Plug	£2.53 £2.11
11	MO118401001/1 Available to backorder	Oil Drain Seal	£1.55 £1.29
12	MO118738221/0 Available to backorder	Right Exhaust Connection Tube	£92.90 £77.42
13	MO118738222/0 Available to backorder	Left Exhaust Connection Tube	£91.50 £76.25
14	MO127430562/1 Available to backorder	Spring	£1.70 £1.42
31	MO182750003/0 Available to backorder	Muffler Assy	£265.02 £220.85
32	MO112793102/0 In stock	Screw	£1.55 £1.29
33	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
34	MO112360425/0 Available to backorder	Nut	£1.92 £1.60
35	MO382598005/2 Available to backorder	Muffler Protection	£40.82 £34.02
36	MO112792611/0 In stock	Screw	£1.55 £1.29
37	MO112583500/0 In stock	Washer M8 Uni 1751 Wz	£1.55 £1.29
