16E - 2012-2020 - 294420067/AT2 - Atco Rotary Mower Deck Diagram

Name: 16E - 2012-2020 - 294420067/AT2 - Atco Rotary Mower Deck Diagram
SKU: 16e_294420067_at2_deck-group
Price: 1.29 GBP
Availability: InStock

Part No. 16e_294420067_at2_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

16E - 2012-2020 - 294420067/AT2 - Atco Rotary Mower Deck Diagram

Description

Atco 16E Parts Diagram

Product Name - 16E

Model Year - 2012-2020

Model Type - EL 420

Art.N - 294420067/AT2

Engine Model -

	Part No.	Details
1	MO322066784/0 Available to backorder	Deck Stiga Grey	£81.66 £68.05
2	MO322785387/0 Available to backorder	Support. Wheel To 31-8-2014	£2.11 £1.76
2	MO322785450/0 Available to backorder	Support. Wheel From 01-9-2014 To 31-12-2021	£1.97 £1.64
2	MO322785450/1 Available to backorder	Support. Wheel From 01-1-2022	£1.97 £1.64
3	MO322686105/0 Available to backorder	Wheel	£9.08 £7.57
4	MO322110637/0 Available to backorder	Hub Cap Grey	£3.25 £2.71
5	MO112604903/0 In stock	Washer	£1.55 £1.29
6	MO122033427/0 Available to backorder	Rear Wheel Axle	£9.86 £8.22
7	MO322545142/0 Available to backorder	Plate	£1.55 £1.29
8	MO112728714/0 Available to backorder	Screw	£1.63 £1.36
9	MO322785388/1 Available to backorder	Lever. Height Adjustment From 01-9-2012 To 31-8-2014	£18.02 £15.02
9	MO322785443/1 In stock	Lever. Height Adjustment From 01-9-2017	£16.34 £13.62
10	MO322524354/0 In stock	Pin	£1.55 £1.29
11	MO122446195/0 Available to backorder	Spring	£2.82 £2.35
12	MO322869690/0 In stock	Rod. Height Adjustment From 01-9-2014	£8.00 £6.67
13	MO322785415/0 Available to backorder	Plate	£1.97 £1.64
14	MO122033426/0 Available to backorder	Rear Wheel Axle	£9.58 £7.98
15	MO322785438/0 In stock	Support. Wheel From 01-9-2014	£2.94 £2.45
16	MO322686104/0 In stock	Wheel	£5.47 £4.56
17	MO322110685/0 Available to backorder	Hub Cap Grey	£1.55 £1.29

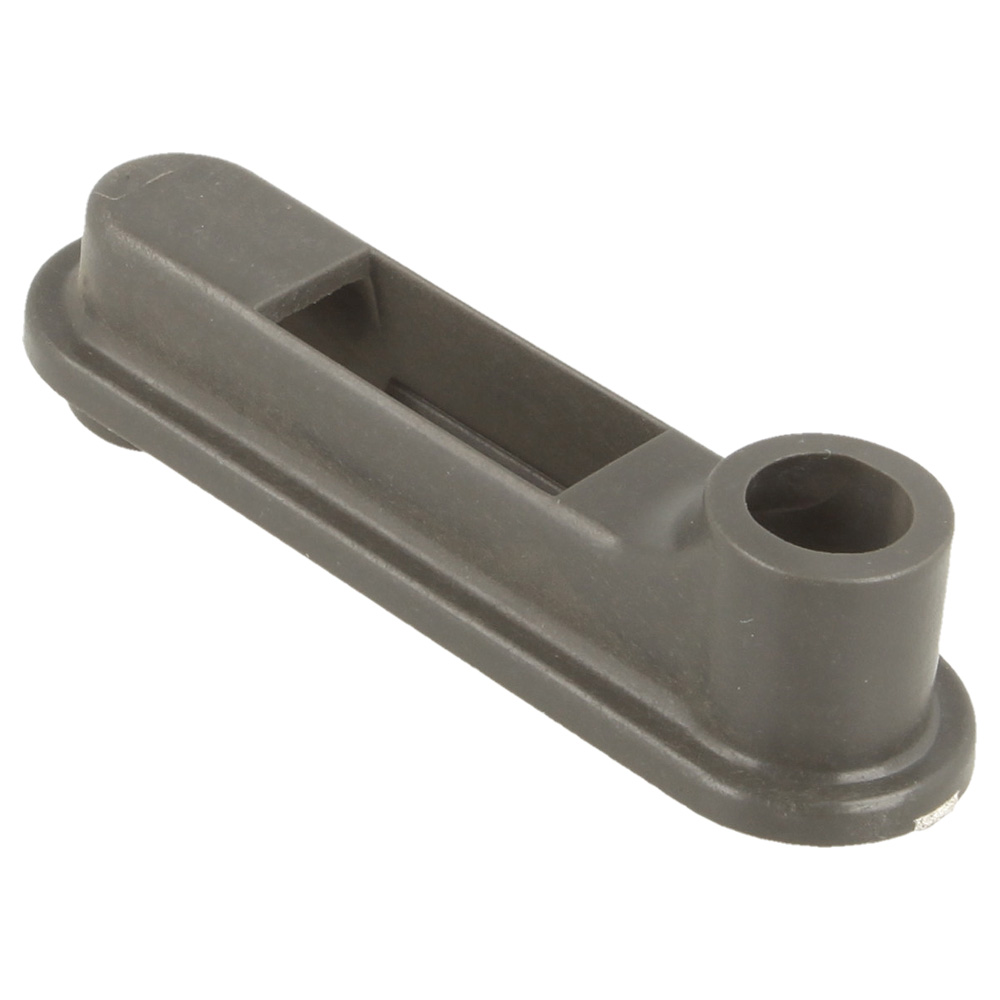

18	MO322785449/0 Available to backorder	Support. Wheel From 01-9-2014	£1.63 £1.36
