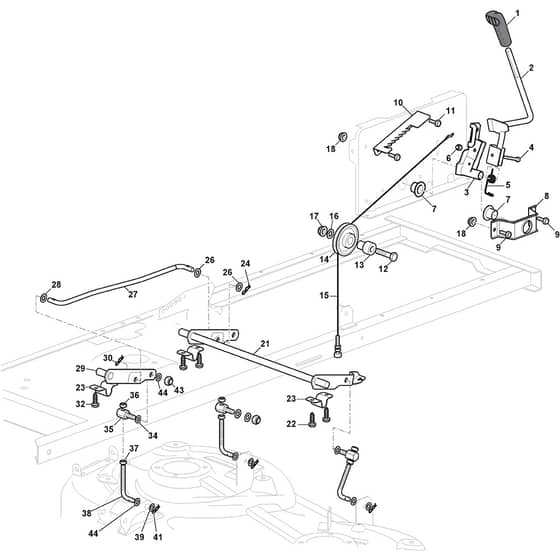

Mountfield 1643H-SD Twin Parts Diagram

Product Name - 1643H-SD Twin

Model Year - 2022

Model Type - SDNS 108 Hydro

Art.N - 2T1220483/M22

Engine Model - ST 550 Twin Powered by STIGA

	Part No.	Details
1	MO325394533/0 Available to backorder	Knob	£3.10 £2.58
2	MO382318229/0 In stock	Lever	Was £16.25 £13.54 Special Price £9.79 £8.16
3	MO382318231/1 Available to backorder	Lifting Axle Assy	£7.02 £5.85
4	MO112674700/0 Available to backorder	Screw	£1.63 £1.36
5	MO125430261/0 Available to backorder	Spring	£1.39 £1.16
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO325038006/0 Available to backorder	Bushing	£1.55 £1.29
8	MO325785297/0 Available to backorder	Support	£6.19 £5.16
10	MO325735515/0 Available to backorder	Steering Sector	£8.00 £6.67
11	MO112792611/0 In stock	Screw	£1.55 £1.29
12	MO112793701/0 In stock	Screw	£1.55 £1.29
13	MO125040636/1 Available to backorder	Bushing	£2.81 £2.34
14	MO125601579/0 In stock	Pulley	£2.81 £2.34
15	MO382004620/0 In stock	Deck Lifting Wire	£14.86 £12.38
16	MO112523060/0 In stock	Washer	£1.55 £1.29
17	MO112293201/0 In stock	Nut	£1.70 £1.42
18	MO112155000/0 In stock	Nut	£1.55 £1.29
21	MO382318295/1 In stock	Lifting Axle	£29.57 £24.64
22	MO112735599/0 In stock	Screw	£1.55 £1.29
23	MO325547231/1 Available to backorder	Lifting Deck Axle Plate	£4.37 £3.64
24	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
26	MO325670010/1 In stock	Antifriction Washer To S.N 24LA3RON008071	£1.33 £1.11
27	MO125033109/0 In stock	Connecting Rod	£9.42 £7.85
44	MO112521360/0 In stock	Washer M10 10.5 X 20 X 2	£1.55 £1.29
