1640H - 2013-2020 - 2T1710483/M13 - Mountfield Ride On Mower Guards Diagram

Description

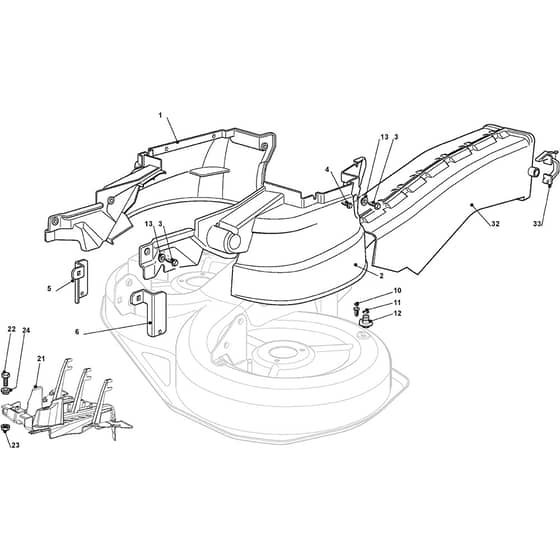

Mountfield 1640H Parts Diagram

Product Name - 1640H

Model Year - 2013-2020

Model Type - NJS 102 Hydro

Art.N - 2T1710483/M13

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325060156/3 Available to backorder	Right Belt Protection Carter From 01-9-2014	£47.87 £39.89
2	MO325060157/2 Available to backorder	Left Belt Protection Carter From 01-9-2014	£47.87 £39.89
3	MO125943011/0 Available to backorder	Screw To 31-8-2016	£9.50 £7.92
3	MO125943014/0 Available to backorder	Screw From 01-9-2016	£9.50 £7.92
4	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
5	MO325774381/0 Available to backorder	Bracket	£4.37 £3.64
6	MO325774383/0 Available to backorder	Bracket	£4.37 £3.64
10	MO112500030/0 In stock	Rivet	£1.49 £1.24
11	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
12	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.49 £1.24
13	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
21	MO325060160/0 Available to backorder	Belt Protection	£25.33 £21.11
22	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
23	MO112154510/0 In stock	Nut	£1.55 £1.29
24	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
32	MO382108021/0 Available to backorder	Conveyor	£64.75 £53.96
33	MO325774373/0 In stock	Release Clamp	£2.95 £2.46
