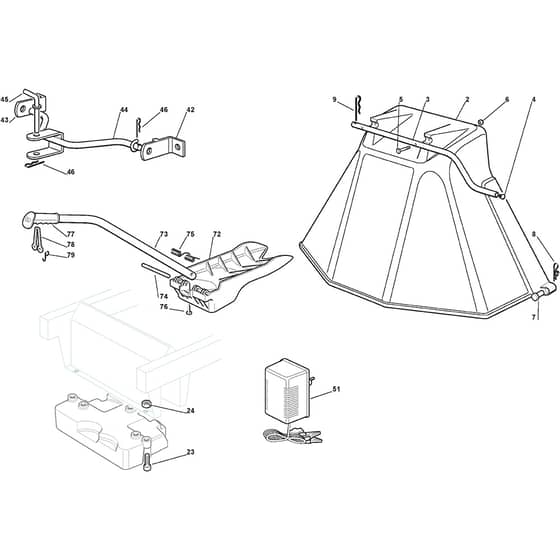

1640H - 2010 - 2T0930483/M10 - Mountfield Ride On Mower Options Diagram

Name: 1640H - 2010 - 2T0930483/M10 - Mountfield Ride On Mower Options Diagram
SKU: 1640h_2t0930483_m10_options-group
Price: 0.87 GBP
Availability: InStock

Part No. 1640h_2t0930483_m10_options-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1640H - 2010 - 2T0930483/M10 - Mountfield Ride On Mower Options Diagram

Description

Mountfield 1640H Parts Diagram

Product Name - 1640H

Model Year - 2010

Model Type - TS 102 Hydro

Art.N - 2T0930483/M10

Engine Model -

	Part No.	Details
2	MO382400003/1 Available to backorder	Ejection Guard From 01-9-2006	£61.94 £51.62
3	MO325869043/0 Available to backorder	Rear Support	£18.59 £15.49
4	MO118566112/0 Available to backorder	Polyethylene Push Road D.20Inch	£1.55 £1.29
5	MO112689515/0 Available to backorder	Screw	£1.63 £1.36
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO125510022/1 In stock	Pin From 01-9-2012	£3.10 £2.58
8	MO124487998/0 In stock	Cotter Pin	£1.04 £0.87
23	MO112760520/0 Available to backorder	Screw	£1.55 £1.29
24	MO112155000/0 In stock	Nut	£1.55 £1.29
42	MO382735502/0 Available to backorder	Bracket	£13.94 £11.62
43	MO325774213/0 Available to backorder	Bracket	£5.65 £4.71
44	MO382033115/0 Available to backorder	Tow Bar From 01-9-2014	£43.63 £36.36
45	MO125510021/1 In stock	Hitch Pin	£11.10 £9.25
46	MO124487999/0 Available to backorder	Spring Pin	£1.84 £1.53
51	MO1134-9250-01 In stock	Battery Charger 12V 1A - Uk Plugg UK plug From 01-9-2009	£60.08 £50.07
72	MO325140097/0 Available to backorder	Deflector	£33.79 £28.16
73	MO325394005/0 Available to backorder	Handle	£21.82 £18.18
74	MO125510077/0 In stock	Pin	£3.38 £2.82
75	MO125430245/0 In stock	Spring	£3.52 £2.93
76	MO112735405/0 Available to backorder	Screw	£1.55 £1.29
77	MO325280000/1 In stock	Handgrip	£3.10 £2.58
78	MO125840011/1 In stock	Tie Rod From 01-9-2003	£7.18 £5.98
79	MO125253004/0 In stock	Fixing Hook	£1.55 £1.29
