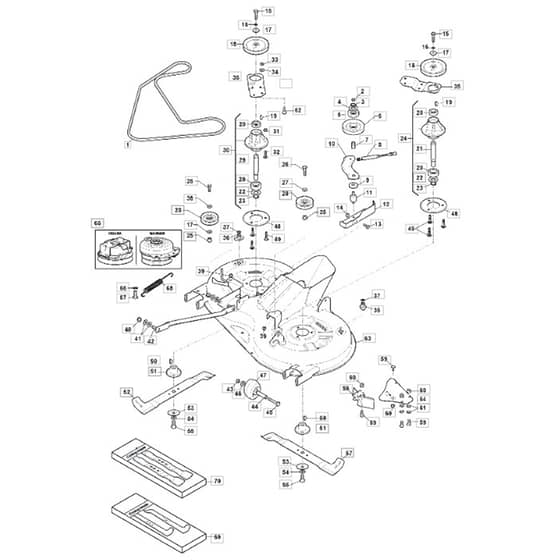

1638H Twin - 2021 - 2T2630483/M21 - Mountfield Ride On Mower 98cm Deck Diagram

Description

Mountfield 1638H Twin Parts Diagram

Product Name - 1638H Twin

Model Year - 2021

Model Type - MPNS 98 Hydro

Art.N - 2T2630483/M21

Engine Model - ST 550 Twin Powered by STIGA

Be the first to review this product

0 product questions

	Part No.	Details
1	MO135061509/0LC In stock	Drive Belt	£75.46 £62.88
2	MO112293201/0 In stock	Nut	£1.69 £1.41
4	MO112610800/0 Available to backorder	Seeger	£1.69 £1.41
5	MO119216048/0 In stock	Bearing	£18.31 £15.26
6	MO125601595/0 In stock	Pulley	£35.20 £29.33
7	MO125160052/0 Available to backorder	Spacer	£2.95 £2.46
8	MO382004618/0 In stock	Wire	£22.81 £19.01
9	MO125040635/0 In stock	Bushing	£4.19 £3.49
10	MO325318343/0 Available to backorder	Lever	£13.58 £11.32
11	MO125160049/0 Available to backorder	Spacer	£7.02 £5.85
12	MO325785391/0 Available to backorder	Bracket	£21.89 £18.24
13	MO112818690/0 Available to backorder	Screw	£1.61 £1.34
14	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
15	MO112793102/0 In stock	Screw	£1.55 £1.29
16	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
17	MO125670007/0 In stock	Washer	£1.97 £1.64
18	MO125601604/0 Available to backorder	Pulley	£52.08 £43.40
19	MO112139480/0 Available to backorder	Feather	£1.69 £1.41
20	MO119216047/0 In stock	Bearing	£15.78 £13.15
21	MO125020804/0 In stock	Blade Shaft	£35.20 £29.33
22	MO325160501/1 Available to backorder	Dust Cover Disc	£1.49 £1.24
23	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
24	MO382207204/1 Available to backorder	Flange Assy	£102.06 £85.05
25	MO125160110/0 Available to backorder	Spacer	£3.38 £2.82
26	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
27	MO112524010/0 Available to backorder	Washer	£1.82 £1.52
28	MO325601599/0 In stock	Pulley (Steel) To S.N 21KA3RON000770	£19.14 £15.95
28	MO125601613/1 Available to backorder	Pulley (Plastic) From S.N 21KA3RON000771	£16.99 £14.16
29	MO125020805/0 In stock	Right Blade Shaft	£35.20 £29.33
30	MO382207205/1 In stock	Flange Assy	£102.06 £85.05
34	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
35	MO325774617/0 Available to backorder	Stiffening	£13.66 £11.38
36	MO325033086/0 Available to backorder	Water Hose Connection	£1.55 £1.29
37	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
40	MO112156602/0 In stock	Nut	£1.40 £1.17
41	MO325670008/1 In stock	Washer	£1.55 £1.29
42	MO382000565/1 Available to backorder	Equalizer Rod	£20.62 £17.18
44	MO125160072/0 Available to backorder	Spacer	£3.94 £3.28
45	MO112692100/0 Available to backorder	Screw	£2.81 £2.34
46	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
47	MO182700005/0 In stock	Anti Scalp Wheel Ø90 ø90	£17.68 £14.73
48	MO325160505/0 Available to backorder	Disc	£12.82 £10.68
49	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
50	MO112139100/0 In stock	Key	£1.55 £1.29
51	MO125463200/0 In stock	Blade Holder	£9.08 £7.57
52	MO182004364/0 Available to backorder	Right Mulching Blade Mulching	£22.08 £18.40
52	MO182004362/0 Available to backorder	Right Blade. Winged Winged	£26.27 £21.89
53	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
54	MO112523080/0 In stock	Washer	£1.55 £1.29
55	MO112735695/1 In stock	Screw	£3.79 £3.16
56	MO112735694/0 In stock	Screw	£1.97 £1.64
57	MO182004346/0 Available to backorder	Left Blade. Mulching Mulching	£22.08 £18.40
57	MO182004363/0 Available to backorder	Left Blade. Winged Winged	£26.27 £21.89
58	MO325140111/0 Available to backorder	Deflector	£6.76 £5.63
59	MO112791213/1 In stock	Screw	£1.55 £1.29
60	MO112154510/0 In stock	Nut	£1.55 £1.29
61	MO112523040/0 In stock	Washer	£1.49 £1.24
63	MO382564118/1 In stock	Cutting Plate Black	£387.36 £322.80
64	MO325785509/0 Available to backorder	Rear Deflector Suppot	£10.42 £8.68
65	MO118399069/1 Available to backorder	Electromagnetic Clutch Warner	£353.16 £294.30
65	MO118399075/1 Available to backorder	Electromagnetic Clutch Ogura	£295.63 £246.36
66	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
67	MO112737320/0 In stock	Screw	£4.37 £3.64
68	MO125430277/1 Available to backorder	Spring	£2.12 £1.77
69	MO1134-9226-01 In stock	Winged Blades Stiga packed into 182004362.0 + 182004363.0	£65.99 £54.99
70	MO1134-9234-01 In stock	Mulching Blade 98cm [Stiga Pack]	£47.10 £39.25
