1636M - 2015 - 2T0330483/M15 - Mountfield Ride On Mower TRE0801 Engine Diagram

Description

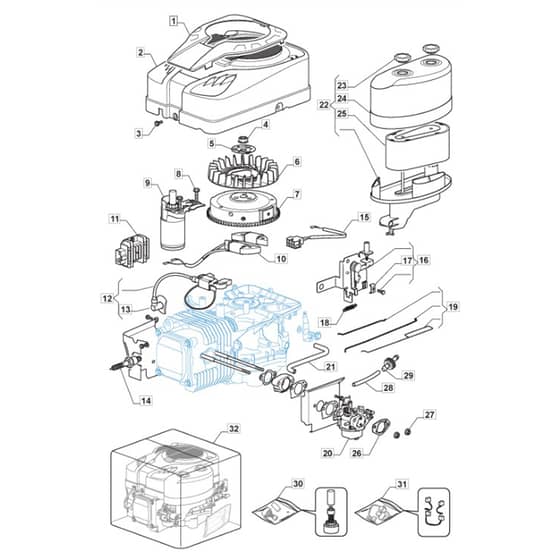

Mountfield 1636M Parts Diagram

Product Name - 1636M

Model Year - 2015

Model Type - NJS 92

Art.N - 2T0330483/M15

Engine Model - Mountfield 7750 452 cc

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325055001/0 Available to backorder	Cover Ring. Yellow	£13.44 £11.20
1	MO325055002/0 Available to backorder	Hood. Black	£13.44 £11.20
2	MO118550516/0 Available to backorder	Cover	£29.56 £24.63
3	MO112791213/1 In stock	Screw	£1.55 £1.29
4	MO118550237/0 Available to backorder	Nut	£3.38 £2.82
5	MO118550236/0 Available to backorder	Starter Cup	£6.06 £5.05
6	MO118550235/0 Available to backorder	Flywheel Fan	£24.78 £20.65
7	MO118550234/2 Available to backorder	Flywheel Ass.Y	£215.46 £179.55
8	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
9	MO118550214/0 Available to backorder	Start Motor Assy	£154.86 £129.05
10	MO118550210/1 Available to backorder	Coil Assy. Charge	£56.56 £47.13
11	MO118550208/1 Available to backorder	Rectfier	£48.91 £40.76
12	MO118550209/1 Available to backorder	Electronic Coil	£41.75 £34.79
13	MO118550448/0 Available to backorder	Spark Plug Terminal	£16.16 £13.47
14	3381 In stock	Spark Plug	£4.44 £3.70
15	MO118550207/0 Available to backorder	Output Wire. Rectifier	£6.86 £5.72
16	MO118550331/1 Available to backorder	Remote Control Assy	£42.23 £35.19
18	MO118550213/0 Available to backorder	Spring	£2.12 £1.77
19	MO118550239/1 Available to backorder	Governor Rod Assy	£13.81 £11.51
20	MO118550763/1 In stock	Carburetor	£83.75 £69.79
21	MO118550225/1 Available to backorder	Breather Fuel Pipe	£8.87 £7.39
22	MO118551516/0 Available to backorder	Air Cleaner Assy	£39.06 £32.55
23	MO118550201/0 In stock	Knob	£1.55 £1.29
24	MO118550200/0 Available to backorder	Air Cleaner Cover	£16.75 £13.96
25	MO118550199/0 In stock	Air Filter	£18.56 £15.47
26	MO118550762/0 Available to backorder	Air Filter Gasket	£5.44 £4.53
27	MO112292102/0 In stock	Nut	£1.69 £1.41
28	MO118550432/0 Available to backorder	Fuel Pipe	£2.81 £2.34
29	MO118550427/0 In stock	Fuel Filter	£5.48 £4.57
30	MO118550365/1 Available to backorder	Kit Repair	£50.68 £42.23
31	MO118550332/1 Available to backorder	Brushhold	£35.20 £29.33
