1636M - 2015 - 2T0330483/M15 - Mountfield Ride On Mower Seat Diagram

Description

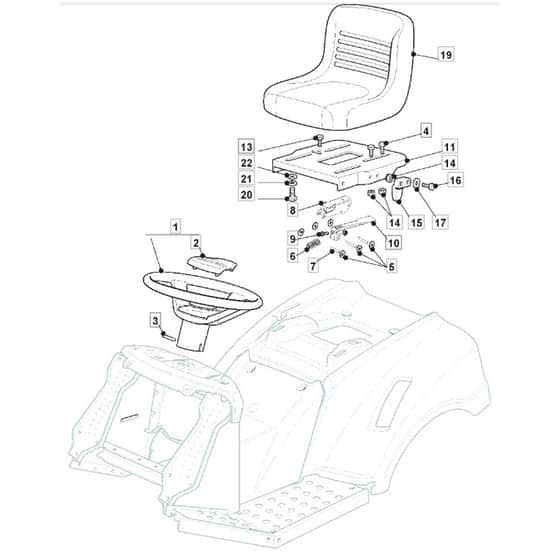

Mountfield 1636M Parts Diagram

Product Name - 1636M

Model Year - 2015

Model Type - NJS 92

Art.N - 2T0330483/M15

Engine Model - Mountfield 7750 452 cc

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125961216/1 Available to backorder	Steering Wheel	£54.61 £45.51
2	MO325580500/0 Available to backorder	Cap	£7.62 £6.35
3	MO112620299/0 Available to backorder	Elastic Pin To 31-8-2016	£1.82 £1.52
3	MO112620250/0 Available to backorder	Pin From 01-9-2016	£1.55 £1.29
5	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
6	MO125430285/0 Available to backorder	Spring	£6.90 £5.75
7	MO122517866/0 Available to backorder	Pin	£1.55 £1.29
8	MO325774575/0 Available to backorder	Fulcrum Clamp	£9.00 £7.50
10	MO325318327/0 Available to backorder	Lever To 31-8-2017	£9.35 £7.79
10	MO382318315/0 Available to backorder	Lever From 01-9-2017	£10.56 £8.80
11	MO325547033/2 Available to backorder	Seat Plate	£39.42 £32.85
13	MO112789000/0 Available to backorder	Screw To 31-8-2017	£1.55 £1.29
13	MO112735661/0 Available to backorder	Screw From 01-9-2017	£1.55 £1.29
14	MO112154330/0 In stock	Nut	£1.55 £1.29
15	MO327063021/1 Available to backorder	Cam	£7.85 £6.54
16	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
17	MO112523020/0 In stock	Washer	£1.55 £1.29
19	MO125722471/0 In stock	Seat	£190.04 £158.37
20	MO112793101/0 Available to backorder	Screw	£1.48 £1.23
21	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
22	MO112523060/0 Available to backorder	Washer M8 8.4 X 24 X 2	£1.55 £1.29
