Description

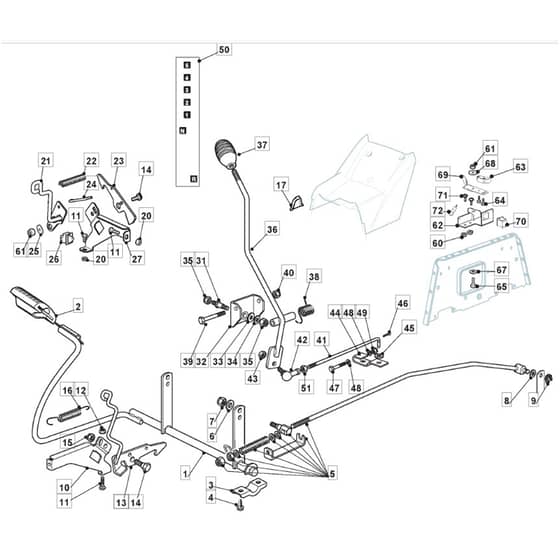

Mountfield 1636M Parts Diagram

Product Name - 1636M

Model Year - 2015

Model Type - NJS 92

Art.N - 2T0330483/M15

Engine Model - Mountfield 7750 452 cc

Ref. Img. Part No. Details
  2 Clamp Cover
Clamp Cover
MO125110269/0 Out of stock
Clamp Cover
£3.53 £2.94

  3 Plate
Plate
MO327546015/2 Out of stock
Plate
£1.49 £1.24

  4 Screw
Screw
MO112729601/1 Out of stock
Screw
£1.48 £1.23

  5 Rod (Peerless)
Rod (Peerless)
MO382000540/1 Out of stock
Rod (Peerless)
£43.33 £36.11

  6 Washer
Washer
MO112523040/0 In stock
Washer
£1.63 £1.36

  8 Washer
Washer
MO112521350/0 In stock
Washer
£1.63 £1.36

  9 Plate
Plate
MO112436050/0 In stock
Plate
£1.75 £1.46

  10 Support
Support
MO325785261/0 Out of stock
Support
£6.37 £5.31

  11 Screw
Screw
MO112815200/0 Out of stock
Screw
£1.63 £1.36

  12 Nut
Nut
MO112292102/0 Out of stock
Nut
£1.63 £1.36

  13 Rod To 31-8-2014
Rod To 31-8-2014
MO382000531/0 Out of stock
Rod To 31-8-2014
£335.26 £279.38

  13 Brake Lever From 01-9-2014
Brake Lever From 01-9-2014
MO382318289/0 Out of stock
Brake Lever From 01-9-2014
£23.84 £19.87

  14 Pin
Pin
MO122524970/3 Out of stock
Pin
£1.63 £1.36

  15 Nut
Nut
MO112155000/0 In stock
Nut
£1.63 £1.36

  16 Spring
Spring
MO125430213/0 Out of stock
Spring
£1.63 £1.36

  17 Plate
Plate
MO325207172/0 Out of stock
Plate
£4.07 £3.39

  23 Brake Hook
Brake Hook
MO325253007/1 Out of stock
Brake Hook
£6.10 £5.08

  24 Rod
Rod
MO125033119/0 Out of stock
Rod
£6.77 £5.64

  25 Bushing
Bushing
MO122041980/0 Out of stock
Bushing
£1.49 £1.24

  26 Microswitch
Microswitch
MO119410622/1 In stock
Microswitch
£6.00 £5.00

  31 Pin
Pin
MO125510035/0 Out of stock
Pin
£3.53 £2.94

  32 Clamp
Clamp
MO382774247/0 Out of stock
Clamp
£8.20 £6.83

  33 Antifriction Washer
Antifriction Washer
MO322672152/0 Out of stock
Antifriction Washer
£1.75 £1.46

  34 Washer
Washer
MO112523060/0 In stock
Washer
£1.49 £1.24

  35 Nut
Nut
MO112155010/0 In stock
Nut
£2.04 £1.70

  36 Gearshift
Gearshift
MO382318215/0 Out of stock
Gearshift
£32.21 £26.84

  37 Knob
Knob
MO125394510/0 Out of stock
Knob
£4.07 £3.39

  38 Spring
Spring
MO125430258/0 Out of stock
Spring
£7.66 £6.38

  39 Screw
Screw
MO112692050/0 In stock
Screw
£1.75 £1.46

  41 Rod
Rod
MO125033012/0 Out of stock
Rod
£9.61 £8.01

  42 Joint
Joint
MO122746610/0 Out of stock
Joint
£20.32 £16.93

  44 Gear Lever
Gear Lever
MO325318128/1 Out of stock
Gear Lever
£4.48 £3.73

  45 Washer
Washer
MO112521340/0 Out of stock
Washer
£1.36 £1.13

  46 Cotter Pin
Cotter Pin
MO112141418/0 In stock
Cotter Pin
£1.49 £1.24

  47 Screw
Screw
MO112735520/0 Out of stock
Screw
£1.49 £1.24

  48 Washer
Washer
MO112540040/0 Out of stock
Washer
£1.36 £1.13

  49 Nut
Nut
MO112154510/0 In stock
Nut
£1.63 £1.36

  51 Nut
Nut
MO112293200/0 In stock
Nut
£1.63 £1.36

  60 Nut
Nut
MO112293201/0 In stock
Nut
£1.63 £1.36

  63 Cam
Cam
MO325060034/1 Out of stock
Cam
£2.04 £1.70

  64 Screw
Screw
MO112735404/0 Out of stock
Screw
£1.49 £1.24

  65 Fulcrum Pin
Fulcrum Pin
MO122529662/0 Out of stock
Fulcrum Pin
£3.07 £2.56

  67 Washer
Washer
MO112521371/0 Out of stock
Washer
£1.49 £1.24

  70 Microswitch
Microswitch
MO119410623/0 Out of stock
Microswitch
£6.96 £5.80

  71 Screw
Screw
MO112800815/0 Out of stock
Screw
£1.63 £1.36


Description

Mountfield 1636M Parts Diagram

Product Name - 1636M

Model Year - 2015

Model Type - NJS 92

Art.N - 2T0330483/M15

Engine Model - Mountfield 7750 452 cc
