1636M - 2015 - 2T0330483/M15 - Mountfield Ride On Mower Chassis Diagram

Name: 1636M - 2015 - 2T0330483/M15 - Mountfield Ride On Mower Chassis Diagram
SKU: 1636m_2t0330483_m15_chassis-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1636M - 2015 - 2T0330483/M15 - Mountfield Ride On Mower Chassis Diagram

Description

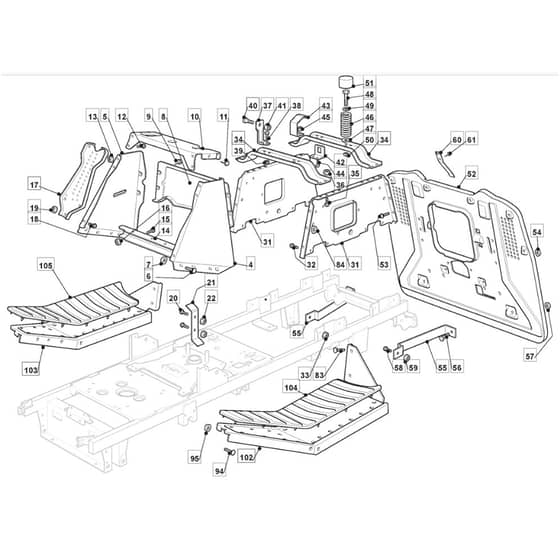

Mountfield 1636M Parts Diagram

Product Name - 1636M

Model Year - 2015

Model Type - NJS 92

Art.N - 2T0330483/M15

Engine Model - Mountfield 7750 452 cc

Be the first to review this product

0 product questions

	Part No.	Details
5	MO325785245/0 Available to backorder	Right Dashboard Support	£22.25 £18.54
8	MO382785151/2 Available to backorder	Rear Dashboard Support	£16.82 £14.02
10	MO325785255/0 Available to backorder	Central Dashboard Support	£8.23 £6.86
11	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
12	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
13	MO112292102/0 In stock	Nut	£1.69 £1.41
14	MO325785241/0 Available to backorder	Support	£7.13 £5.94
15	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
17	MO382785153/1 Available to backorder	Front Dashboard Support To S.N 19KA1RON001015	£15.42 £12.85
17	MO382785153/2 Available to backorder	Front Dashboard Support From S.N 19KA1RON001016	£15.28 £12.73
20	MO112793102/0 In stock	Screw	£1.55 £1.29
21	MO325785499/0 Available to backorder	Support	£6.05 £5.04
22	MO112293201/0 In stock	Nut	£1.69 £1.41
31	MO325785249/0 Available to backorder	Seat Support	£33.79 £28.16
34	MO325785257/1 Available to backorder	Seat Support To S.N 19KA1RON001015	£12.46 £10.38
34	MO382785309/0 Available to backorder	Seat Support From S.N 19KA1RON001016	£12.32 £10.27
35	MO112818690/0 Available to backorder	Screw To 31-8-2017	£1.61 £1.34
35	MO9897-0820-16 Available to backorder	Screw From 01-9-2017	£1.97 £1.64
37	MO325755039/0 Available to backorder	Bracket	£7.73 £6.44
38	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
40	MO122524970/3 Available to backorder	Pin From 01-9-2014	£1.69 £1.41
40	MO122524970/2 Available to backorder	Fulcrum Pin To 31-8-2014	£1.90 £1.58
41	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
42	MO325755043/0 Available to backorder	Bracket	£2.26 £1.88
43	MO325430253/0 Available to backorder	Micro Seat Protect Spring	£5.21 £4.34
44	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
45	MO112154330/0 In stock	Nut	£1.55 £1.29
46	MO125430257/1 Available to backorder	Spring	£12.53 £10.44
47	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
48	MO112760515/0 Available to backorder	Screw	£1.55 £1.29
49	MO122671653/0 Available to backorder	Washer	£1.55 £1.29
50	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
51	MO325122000/2 Available to backorder	Cap	£1.55 £1.29
52	MO382547041/1 Available to backorder	Plate	£102.76 £85.63
55	MO325650119/0 Available to backorder	Plate Stiffening	£13.51 £11.26
60	MO125430276/0 Available to backorder	Spring	£5.06 £4.22
102	MO382510083/1 Available to backorder	Left Footboard Support From S.N 19KA1RON001059	£76.72 £63.93
102	MO382510083/0 Available to backorder	Left Footboard Support To S.N 19KA1RON001058	£72.56 £60.47
103	MO382510081/0 Available to backorder	Right Footboard Support To S.N 19KA1RON001276	£78.84 £65.70
103	MO382510081/1 Available to backorder	Right Footboard Support From S.N 19KA1RON001277	£76.72 £63.93
104	MO325110327/0 Available to backorder	Left Footboard Cover	£18.16 £15.13
105	MO325110326/0 Available to backorder	Right Footboard Cover	£19.85 £16.54
