1636M - 2007 - 13-2623-12 - Mountfield Ride On Mower Engine Diagram

Name: 1636M - 2007 - 13-2623-12 - Mountfield Ride On Mower Engine Diagram
SKU: 1636m_13_2623_12_engine-group
Price: 1.29 GBP
Availability: InStock

Part No. 1636m_13_2623_12_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1636M - 2007 - 13-2623-12 - Mountfield Ride On Mower Engine Diagram

Description

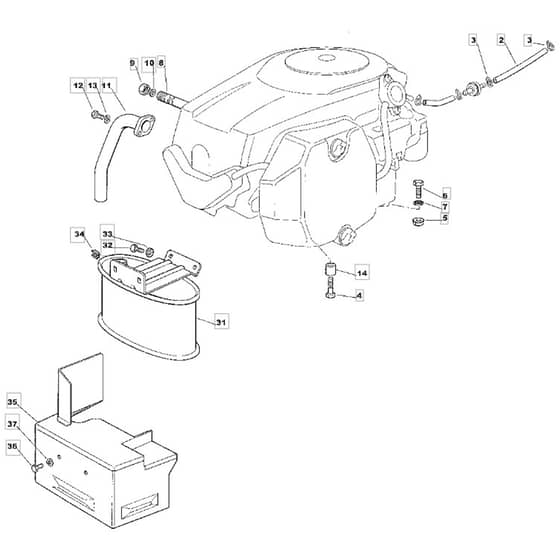

Mountfield 1636M Parts Diagram

Product Name - 1636M

Model Year - 2007

Model Type -

Art.N - 13-2623-12

	Part No.	Details
1	MO325869057/0 Available to backorder	Fuel Tube	£20.56 £17.13
3	MO118375062/0 Available to backorder	Fair Led	£1.92 £1.60
4	MO112735108/1 In stock	Screw	£2.11 £1.76
5	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
6	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
8	MO127598060/0 Available to backorder	Oil Discharge Extension	£8.18 £6.82
9	MO118737849/0 Available to backorder	Plug	£2.53 £2.11
10	MO118401001/1 Available to backorder	Oil Seal	£1.55 £1.29
12	MO112735530/0 Available to backorder	Screw	£1.84 £1.53
13	MO112583500/0 In stock	Grower	£1.55 £1.29
14	MO125160035/0 Available to backorder	Spacer	£2.69 £2.24
31	MO182750010/0 Available to backorder	Single-Cylinder Muffler	£123.89 £103.24
32	MO112793102/0 In stock	Screw	£1.55 £1.29
33	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
34	MO112360425/0 Available to backorder	Nut	£1.92 £1.60
36	MO112792611/0 In stock	Screw	£1.55 £1.29
