1636M - 2007 - 13-2623-12 - Mountfield Ride On Mower Deck Lifting Diagram

Name: 1636M - 2007 - 13-2623-12 - Mountfield Ride On Mower Deck Lifting Diagram
SKU: 1636m_13_2623_12_deck_lifting-group
Price: 0.87 GBP
Availability: InStock

Part No. 1636m_13_2623_12_deck_lifting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1636M - 2007 - 13-2623-12 - Mountfield Ride On Mower Deck Lifting Diagram

Description

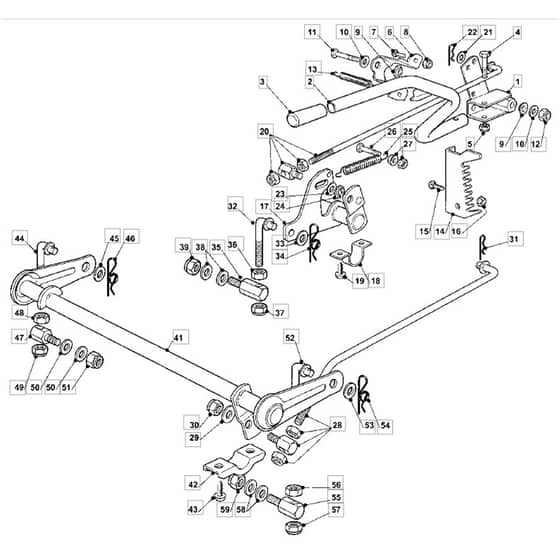

Mountfield 1636M Parts Diagram

Product Name - 1636M

Model Year - 2007

Model Type -

Art.N - 13-2623-12

	Part No.	Details
1	MO382774249/0 Available to backorder	Clamp	£27.31 £22.76
2	MO382318219/1 Available to backorder	Lift Lever T35M . 1436M.H	£45.04 £37.53
3	MO125394508/0 Available to backorder	Knob T35M . 1436M.H	£5.06 £4.22
4	MO112674700/0 Available to backorder	Screw T35M . 1436M.H	£1.63 £1.36
5	MO112154510/0 In stock	Nut T35M . 1436M.H	£1.55 £1.29
6	MO325650113/0 Available to backorder	Plate T35M . 1436M.H	£4.93 £4.11
9	MO122041980/0 Available to backorder	Bushing T35M . 1436M.H	£1.55 £1.29
10	MO112523060/0 In stock	Washer T35M . 1436M.H	£1.55 £1.29
11	MO112691600/0 Available to backorder	Screw T35M . 1436M.H	£1.84 £1.53
12	MO112155000/0 In stock	Nut T35M . 1436M.H	£1.55 £1.29
13	MO125430259/0 Available to backorder	Spring T35M . 1436M.H	£4.78 £3.98
14	MO325735511/0 Available to backorder	Sector T35M . 1436M.H	£7.02 £5.85
15	MO112818690/0 In stock	Screw T35M . 1436M.H	£1.55 £1.29
16	MO112293201/0 In stock	Nut T35M . 1436M.H	£1.70 £1.42
17	MO382000387/0 In stock	Axle T35M . 1436M.H	£28.14 £23.45
18	MO325547041/1 Available to backorder	Left Plate T35M . 1436M.H	£5.34 £4.45
19	MO112731601/0 Available to backorder	Screw T35M . 1436M.H	£1.97 £1.64
20	MO382000618/0 Available to backorder	Rod T35M . 1436M.H	£43.75 £36.46
21	MO325670011/0 Available to backorder	Antifriction Washer T35M . 1436M.H	£1.55 £1.29
22	MO124487998/0 In stock	Cotter Pin T35M . 1436M.H	£1.04 £0.87
23	MO325670008/1 In stock	Washer T35M . 1436M.H	£1.55 £1.29
24	MO112436050/0 In stock	Plate T35M . 1436M.H	£1.84 £1.53
25	MO122446402/1 Available to backorder	Spring T35M . 1436M.H	£5.06 £4.22
26	MO112792410/0 Available to backorder	Screw T35M . 1436M.H	£1.63 £1.36
27	MO112292102/0 In stock	Nut T35M . 1436M.H	£1.70 £1.42
28	MO382000537/0 Available to backorder	Connecting Rod T35M . 1436M.H	£32.51 £27.09
30	MO112156602/0 In stock	Nut T35M . 1436M.H	£1.39 £1.16
32	MO125840025/0 In stock	Tie Rod T35M . 1436M.H	£9.43 £7.86
35	MO382640808/0LC Available to backorder	Pin T35M . 1436M.H	£20.72 £17.27
36	MO112295200/0 In stock	Nut T35M . 1436M.H	£1.39 £1.16
41	MO382000385/0 Available to backorder	Axle T35M . 1436M.H	£52.08 £43.40
42	MO327546015/2 Available to backorder	Plate T35M . 1436M.H	£1.55 £1.29
43	MO112731350/0 Available to backorder	Screw T35M . 1436M.H	£1.63 £1.36
47	MO382640807/1 Available to backorder	Pin T35M . 1436M.H	£29.80 £24.83
