1636H - 2006 - 299961683/MOE - Mountfield Ride On Mower Seat Diagram

Description

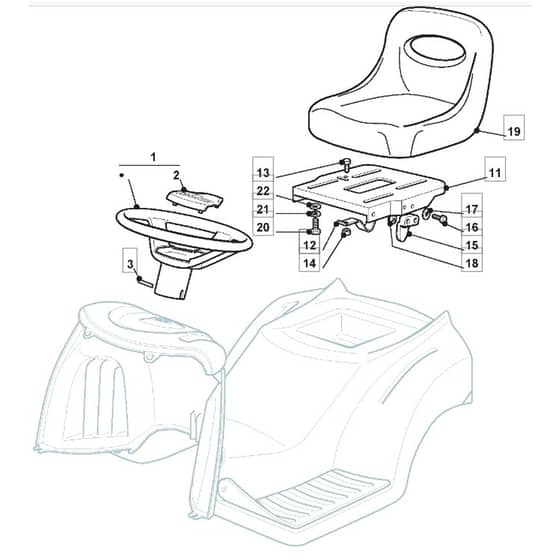

Mountfield 1636H Parts Diagram

Product Name - 1636H

Model Year - 2006

Model Type - JS 92 Hydro

Art.N - 299961683/MOE

	Part No.	Details
1	MO112620299/0 Available to backorder	Elastic Pin	£1.84 £1.53
11	MO325547033/1 Available to backorder	Seat Plate	£39.42 £32.85
12	MO125430223/2 Available to backorder	Spring From 01-9-2003	£6.19 £5.16
13	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
14	MO112154330/0 In stock	Nut	£1.55 £1.29
15	MO327063021/1 Available to backorder	Cam	£7.86 £6.55
16	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
17	MO112523020/0 In stock	Washer	£1.55 £1.29
19	MO125722463/0 Available to backorder	Seat	£204.13 £170.11
20	MO112793101/0 In stock	Screw	£1.55 £1.29
21	MO112583500/0 In stock	Grower	£1.55 £1.29
22	MO112523060/0 In stock	Washer M8 8.4 X 24 X 2	£1.55 £1.29
