1636H - 2006 - 299961683/MO6 - Mountfield Ride On Mower Grasscatcher Diagram

Name: 1636H - 2006 - 299961683/MO6 - Mountfield Ride On Mower Grasscatcher Diagram
SKU: 1636h_299961683_mo6_grasscatcher-group
Price: 1.16 GBP
Availability: InStock

Part No. 1636h_299961683_mo6_grasscatcher-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1636H - 2006 - 299961683/MO6 - Mountfield Ride On Mower Grasscatcher Diagram

Description

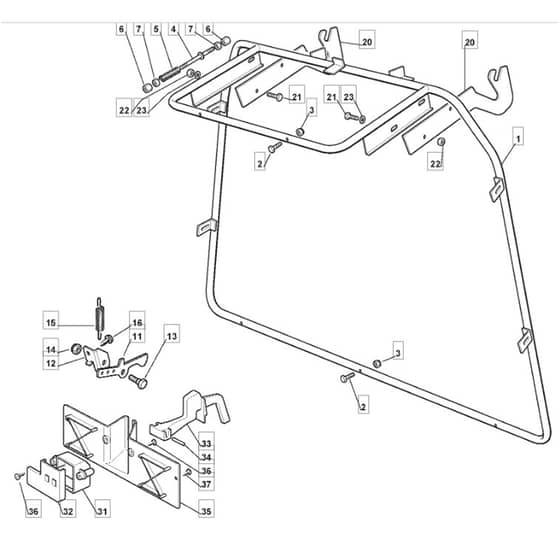

Mountfield 1636H Parts Diagram

Product Name - 1636H

Model Year - 2006

Model Type - JS 92 Hydro

Art.N - 299961683/MO6

	Part No.	Details
2	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
3	MO112154510/0 In stock	Nut	£1.55 £1.29
5	MO125430232/0 Available to backorder	Spring	£1.55 £1.29
7	MO112292100/0 Available to backorder	Nut	£1.39 £1.16
11	MO325774327/0 Available to backorder	Hooking Clamp	£17.39 £14.49
13	MO125510080/2 Available to backorder	Pin	£1.39 £1.16
14	MO112292102/0 In stock	Nut	£1.70 £1.42
15	MO125430220/0 In stock	Brake Spring	£4.08 £3.40
16	MO112735122/1 Available to backorder	Screw	£1.63 £1.36
21	MO112793102/0 In stock	Screw	£1.55 £1.29
22	MO112155000/0 In stock	Nut	£1.55 £1.29
23	MO112521350/0 In stock	Washer	£1.55 £1.29
31	MO125600041/0 Available to backorder	Grassc.Full Micro Protection Tcj-F	£3.90 £3.25
32	MO125600042/0 Available to backorder	Grasscatcher Micro Prot Cover	£7.62 £6.35
33	MO125318124/0 Available to backorder	Full Grassc. Microswtich Cover	£1.97 £1.64
34	MO112400030/0 Available to backorder	Pin	£1.84 £1.53
35	MO125774251/0 Available to backorder	Bracket	£17.20 £14.33
36	MO112728440/0 Available to backorder	Screw	£1.39 £1.16
37	MO112735110/0 Available to backorder	Flanged Self-Tap Screw 4.8 X 13	£1.63 £1.36
