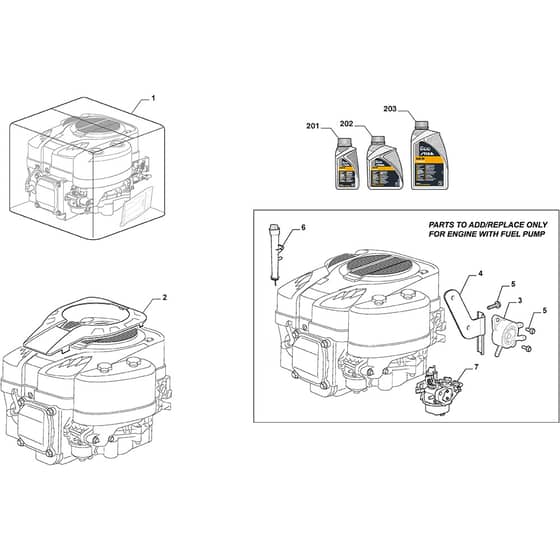

1543H-SD - 2020 - 2T1210483/M20 - Mountfield Ride On Mower Fuel Pump Diagram

Name: 1543H-SD - 2020 - 2T1210483/M20 - Mountfield Ride On Mower Fuel Pump Diagram
SKU: 1543h_sd_2t1210483_m20_fuel_pump-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1543H-SD - 2020 - 2T1210483/M20 - Mountfield Ride On Mower Fuel Pump Diagram

Description

Mountfield 1543H-SD Parts Diagram

Product Name - 1543H-SD

Model Year - 2020

Model Type - SDNS 108 Hydro

Art.N - 2T1210483/M20

Engine Model - ST 500 Powered by STIGA

Be the first to review this product

0 product questions

	Part No.	Details
2	MO325055002/0 Available to backorder	Hood. Black	£13.44 £11.20
2	MO325055001/0 Available to backorder	Cover Ring. Yellow	£13.44 £11.20
3	MO118551578/0 Available to backorder	Fuel Pump	£61.93 £51.61
4	MO118550348/1 Available to backorder	Fuel Pump Stifferning	£24.36 £20.30
5	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
6	MO118550444/1 Available to backorder	Oil Filler Assy	£23.80 £19.83
7	MO118552514/0 Available to backorder	Carburettor	£77.46 £64.55
201	MO1111-9237-01 Available to backorder	Engine Oil. 10W-30 - 0.6 L	£6.92 £5.77
201	MO1111-9234-01 In stock	Engine Oil. Sae 30 - 0.6 L	£6.64 £5.53
202	MO1111-9235-01 In stock	Engine Oil. Sae 30 - 1 L	£9.23 £7.69
203	MO1111-9238-01 In stock	Engine Oil. 10W-30 - 1.4 L	£13.56 £11.30
203	MO1111-9236-01 In stock	Engine Oil. Sae 30 - 1.4 L	£11.50 £9.58
