1543H-SD - 2016-2019 - 2T1210483/M16 - Mountfield Ride On Mower Seat and Steering Wheel Diagram

Name: 1543H-SD - 2016-2019 - 2T1210483/M16 - Mountfield Ride On Mower Seat and Steering Wheel Diagram
SKU: 1543h_sd_2t1210483_m16_seat_and_steering_wheel-group
Price: 1.29 GBP
Availability: InStock

Part No. 1543h_sd_2t1210483_m16_seat_and_steering_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1543H-SD - 2016-2019 - 2T1210483/M16 - Mountfield Ride On Mower Seat and Steering Wheel Diagram

Description

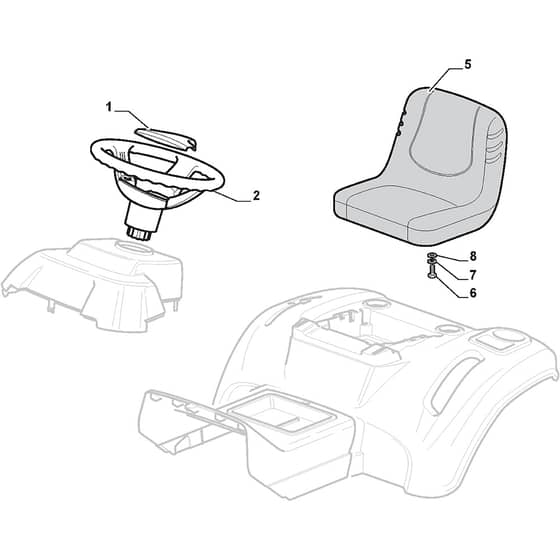

Mountfield 1543H-SD Parts Diagram

Product Name - 1543H-SD

Model Year - 2016-2019

Model Type - SD 108 Hydro

Art.N - 2T1210483/M16

Engine Model - Mountfield 7750

	Part No.	Details
2	MO325961219/0 Available to backorder	Steering Wheel	£36.59 £30.49
5	MO125722483/0 Available to backorder	Seat From 01-9-2017	£190.04 £158.37
5	MO125722463/0 Available to backorder	Seat To 31-8-2017	£204.13 £170.11
6	MO112792611/0 In stock	Screw	£1.55 £1.29
7	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
8	MO112523060/0 In stock	Washer M8 8.4 X 24 X 2	£1.55 £1.29
