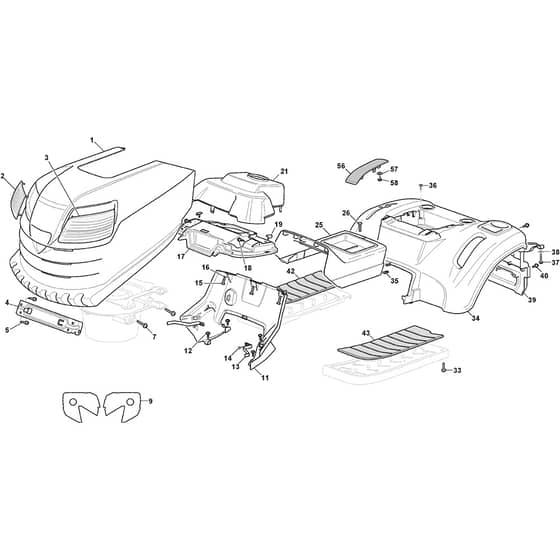

1543H-SD - 2016-2019 - 2T1210483/M16 - Mountfield Ride On Mower Body Diagram

Name: 1543H-SD - 2016-2019 - 2T1210483/M16 - Mountfield Ride On Mower Body Diagram
SKU: 1543h_sd_2t1210483_m16_body-group
Price: 1.29 GBP
Availability: InStock

Part No. 1543h_sd_2t1210483_m16_body-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1543H-SD - 2016-2019 - 2T1210483/M16 - Mountfield Ride On Mower Body Diagram

Description

Mountfield 1543H-SD Parts Diagram

Product Name - 1543H-SD

Model Year - 2016-2019

Model Type - SD 108 Hydro

Art.N - 2T1210483/M16

Engine Model - Mountfield 7750

	Part No.	Details
1	MO325076899/1 Available to backorder	Engine Hood Black From S.N DD232844	£197.09 £164.24
2	MO325410887/0 Available to backorder	Right Grill	£9.17 £7.64
3	MO325410888/0 Available to backorder	Left Grill	£9.16 £7.63
4	MO325785317/0 Available to backorder	Engine Hood Support	£11.53 £9.61
5	MO112735402/0 In stock	Screw	£1.55 £1.29
7	MO112728714/0 Available to backorder	Screw	£1.63 £1.36
9	MO114363452/0 Available to backorder	Light Reflected Label	£5.47 £4.56
11	MO325785298/0 Available to backorder	Dashboard Support	£29.56 £24.63
13	MO325270325/0 Available to backorder	Guide	£4.78 £3.98
14	MO112735120/0 Available to backorder	Screw From 01-9-2013 To 31-8-2018	£1.55 £1.29
14	MO112735599/0 In stock	Screw To 31-8-2013	£1.55 £1.29
15	MO112735406/0 Available to backorder	Screw	£1.63 £1.36
16	MO112523040/0 In stock	Washer	£1.55 £1.29
17	MO325120259/2 Available to backorder	Dashboard From S.N 230508	£35.20 £29.33
17	MO325120209/0 Available to backorder	Dashboard From 01-9-2011 To 31-8-2014	£29.17 £24.31
18	MO125943010/0 In stock	Screw	£1.97 £1.64
19	MO325260003/0 Available to backorder	Grommet	£1.55 £1.29
21	MO325120203/0 Available to backorder	Dashboard Cover	£18.59 £15.49
