1540H - 2008 - 299931483/UMT - Mountfield Ride On Mower Engine Diagram

Description

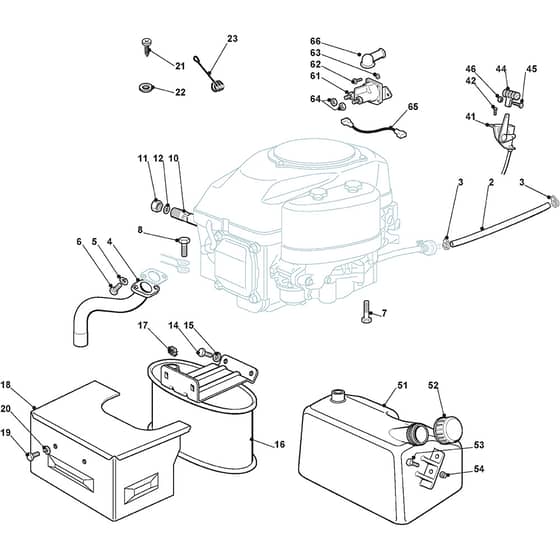

Mountfield 1540H Parts Diagram

Product Name - 1540H

Model Year - 2008

Model Type - TS 102 Hydro

Art.N - 299931483/UMT

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
3	MO118375062/0 Available to backorder	Fair Led	£1.82 £1.52
6	MO112737450/0 Available to backorder	Screw	£3.79 £3.16
7	MO112735108/1 Available to backorder	Screw	£2.12 £1.77
8	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
10	MO127598060/0 Available to backorder	Oil Discharge Extension	£8.17 £6.81
11	MO118737849/0 Available to backorder	Plug	£2.53 £2.11
12	MO118401001/1 Available to backorder	Oil Drain Seal	£1.55 £1.29
14	MO112793102/0 In stock	Screw	£1.55 £1.29
15	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
16	MO182750010/0 Available to backorder	Muffler To 31-3-2018	£123.89 £103.24
16	MO182750015/0 Available to backorder	Muffler From 01-4-2018	£115.43 £96.19
17	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
18	MO382598039/0 Available to backorder	Guard	£68.99 £57.49
19	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
20	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
21	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
22	MO112523020/0 In stock	Washer	£1.55 £1.29
23	MO125430239/1 Available to backorder	Spring	£1.97 £1.64
41	MO182000212/0 Available to backorder	Accelerator	£23.51 £19.59
42	MO125943012/0 Available to backorder	Screw	£1.55 £1.29
44	MO325592000/1 Available to backorder	Knob From 01-9-2013	£2.40 £2.00
44	MO125394501/0 Available to backorder	Knob To 31-8-2013	£1.55 £1.29
45	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
46	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
51	MO125735110/3 Available to backorder	Tank	£53.72 £44.77
52	MO125795000/1 In stock	Fuel Cap	£7.74 £6.45
53	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
54	MO112500092/0 Available to backorder	Rivet	£1.55 £1.29
61	MO118736113/0 In stock	Starter Relay From 01-9-2016	£38.00 £31.67
62	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
63	MO112292102/0 In stock	Nut	£1.69 £1.41
64	MO9743-5121-32 Available to backorder	Nut	£1.40 £1.17
65	MO125065017/0 Available to backorder	Cable	£9.43 £7.86
66	MO118564861/2 Available to backorder	Rubber Terminal Cover [Red]	£6.76 £5.63
