1540H - 2008 - 299931433/M08 - Mountfield Ride On Mower Wheels Diagram

Description

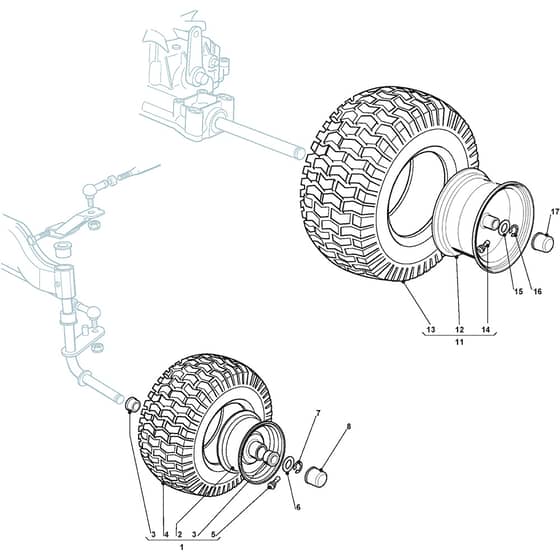

Mountfield 1540H Parts Diagram

Product Name - 1540H

Model Year - 2008

Model Type - TCP 102 Hydro

Art.N - 299931433/M08

Engine Model -

	Part No.	Details
2	MO182000590/1 Available to backorder	Front Wheel Rimm	£68.99 £57.49
3	MO125122200/2 In stock	Bearing	£11.82 £9.85
4	MO125590047/0 Available to backorder	Rear Tyre (Deli) From 01-9-2009	£44.93 £37.44
7	MO112001000/0 Available to backorder	Circlip Ø15	£1.84 £1.53
12	MO182000592/0 Available to backorder	Rear Wheel Rimm	£109.79 £91.49
14	MO125950000/0 In stock	Valve	£5.34 £4.45
15	MO125670005/2 In stock	Washer	£4.08 £3.40
16	MO112001010/0 In stock	Circlip	£1.84 £1.53
17	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
