1540H - 2008 - 299931433/M08 - Mountfield Ride On Mower Grasscatcher Diagram

Name: 1540H - 2008 - 299931433/M08 - Mountfield Ride On Mower Grasscatcher Diagram
SKU: 1540h_299931433_m08_grasscatcher-group
Price: 1.16 GBP
Availability: InStock

Part No. 1540h_299931433_m08_grasscatcher-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1540H - 2008 - 299931433/M08 - Mountfield Ride On Mower Grasscatcher Diagram

Description

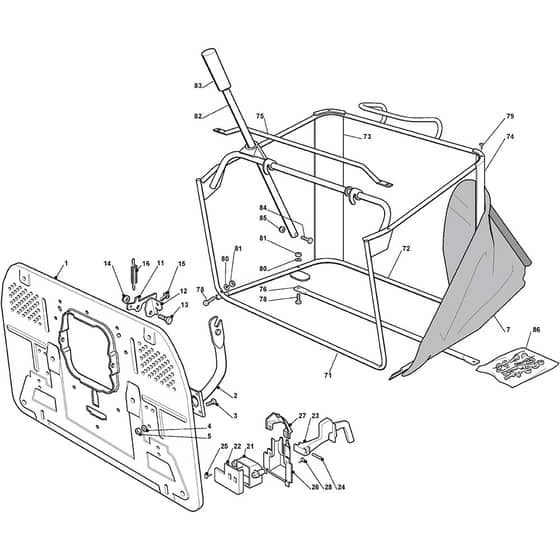

Mountfield 1540H Parts Diagram

Product Name - 1540H

Model Year - 2008

Model Type - TCP 102 Hydro

Art.N - 299931433/M08

Engine Model -

	Part No.	Details
2	MO182774225/1 Available to backorder	Clamp	£33.79 £28.16
3	MO112793102/0 In stock	Screw	£1.55 £1.29
4	MO112523060/0 In stock	Washer	£1.55 £1.29
5	MO112293201/0 In stock	Nut	£1.70 £1.42
7	MO182106000/2 Available to backorder	Grasscatcher	£122.46 £102.05
11	MO325774417/0 Available to backorder	Clamp	£7.02 £5.85
13	MO125510080/2 Available to backorder	Pin	£1.39 £1.16
14	MO112292102/0 In stock	Nut	£1.70 £1.42
15	MO112735122/1 Available to backorder	Screw	£1.63 £1.36
16	MO127430579/0 Available to backorder	Clutch Spring	£12.88 £10.73
21	MO125600041/0 Available to backorder	Grassc.Full Micro Protection Tcj-F	£3.90 £3.25
22	MO125600042/0 Available to backorder	Grasscatcher Micro Prot Cover	£7.62 £6.35
23	MO125318124/0 Available to backorder	Full Grassc. Microswtich Cover	£1.97 £1.64
24	MO112400030/0 Available to backorder	Pin	£1.84 £1.53
25	MO112728440/0 Available to backorder	Screw	£1.39 £1.16
26	MO125600047/0 Available to backorder	Grassc.Full Micro Protection Tc 2000	£1.70 £1.42
27	MO125600048/0 Available to backorder	Empty Micro Grassc.Protection Cover	£1.55 £1.29
28	MO112728450/0 In stock	Screw	£1.55 £1.29
71	MO382800051/1 Available to backorder	Upper Frame	£197.09 £164.24
72	MO382800002/2 Available to backorder	Lower Grasscatcher Frame	£33.79 £28.16
73	MO325032001/1 Available to backorder	Right Angular Support	£15.34 £12.78
74	MO325032002/1 Available to backorder	Left Angular Support	£15.34 £12.78
75	MO382394001/2 Available to backorder	Front Handle	£12.74 £10.62
76	MO382650038/1 Available to backorder	Lower Stiffening	£12.26 £10.22
79	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
80	MO112582101/0 Available to backorder	Grower	£1.66 £1.38
81	MO112292100/0 Available to backorder	Nut	£1.39 £1.16
82	MO125869029/1 Available to backorder	Grasscatcher Lifting Tube	£29.57 £24.64
83	MO125394508/0 Available to backorder	Knob	£5.06 £4.22
84	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
85	MO112154510/0 In stock	Nut	£1.55 £1.29
86	MO382180027/1 Available to backorder	Grasscatcher Screw Outfit	£14.23 £11.86
