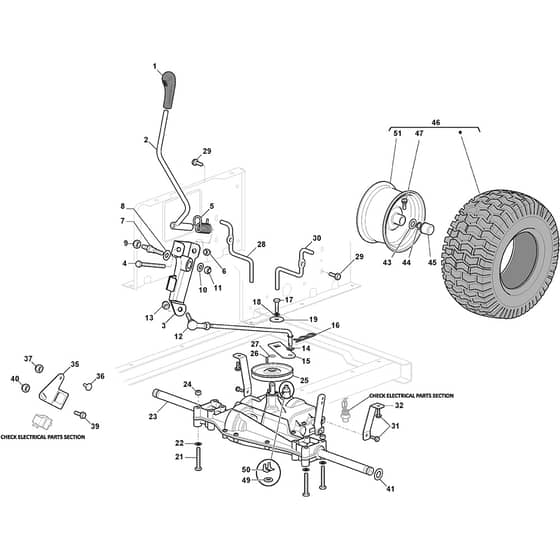

1538M-SD - 2022 - 2T0510483/M22 - Mountfield Ride On Mower Peerless Transmission Diagram

Name: 1538M-SD - 2022 - 2T0510483/M22 - Mountfield Ride On Mower Peerless Transmission Diagram
SKU: 1538m_sd_2t0510483_m22_peerless_transmission-group
Price: 1.16 GBP
Availability: InStock

Part No. 1538m_sd_2t0510483_m22_peerless_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1538M-SD - 2022 - 2T0510483/M22 - Mountfield Ride On Mower Peerless Transmission Diagram

Description

Mountfield 1538M-SD Parts Diagram

Product Name - 1538M-SD

Model Year - 2022

Model Type - SDNS 98

Art.N - 2T0510483/M22

Engine Model - ST 350 Powered by STIGA

	Part No.	Details
1	MO325394532/0 Available to backorder	Knob	£5.22 £4.35
2	MO382318233/0 Available to backorder	Lever	£18.59 £15.49
3	MO382774259/1 Available to backorder	Clamp	£13.38 £11.15
4	MO112692050/0 In stock	Screw	£1.84 £1.53
5	MO125430226/0 Available to backorder	Spring	£2.24 £1.87
7	MO125510035/0 In stock	Pin	£3.66 £3.05
8	MO322672151/0 Available to backorder	Antifriction Washer	£1.84 £1.53
9	MO112293201/0 In stock	Nut	£1.70 £1.42
10	MO112523060/0 In stock	Washer	£1.55 £1.29
11	MO112155010/0 In stock	Nut	£2.11 £1.76
12	MO382000567/1 Available to backorder	Gear Connection Rod Assy	£25.81 £21.51
13	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
14	MO112521340/0 Available to backorder	Washer	£1.46 £1.22
15	MO325318235/0 Available to backorder	Lever	£2.53 £2.11
16	MO112141418/0 In stock	Cotter Pin	£1.55 £1.29
17	MO112791011/0 Available to backorder	Screw for LANGHUI Transmission	£1.39 £1.16
17	MO112735520/0 Available to backorder	Screw for PEERLESS Transmission	£1.55 £1.29
18	MO112540040/0 Available to backorder	Washer	£1.39 £1.16
19	MO322680009/0 Available to backorder	Washer	£1.84 £1.53
21	MO112691600/0 Available to backorder	Screw	£1.84 £1.53
22	MO112521350/0 In stock	Washer	£1.55 £1.29
23	MO118400910/4 Available to backorder	Mechanical Transaxle - Peerless (Mst-205-591E) PEERLESS Transmission	£509.23 £424.36
23	MO118400922/1 Available to backorder	Mechanical Transaxle - Langhui (630030) LANGHUI Transmission From S.N 23CA3RON003336	£1,405.63 £1,171.36
25	MO182601509/0 Available to backorder	Pulley	£76.72 £63.93
26	MO112139430/0 In stock	Key	£1.97 £1.64
27	MO112608950/0 Available to backorder	Seeger	£1.63 £1.36
28	MO125270329/0 Available to backorder	Belt Guide	£4.37 £3.64
29	MO112735599/0 In stock	Screw	£1.55 £1.29
30	MO125270330/0 Available to backorder	Belt Guide	£4.37 £3.64
31	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
32	MO325785315/0 Available to backorder	Support	£5.65 £4.71
35	MO325785483/1 Available to backorder	Support	£4.37 £3.64
36	MO112815200/0 In stock	Screw	£1.55 £1.29
37	MO112154510/0 In stock	Nut	£1.55 £1.29
39	MO112792611/0 In stock	Screw	£1.55 £1.29
40	MO112155000/0 In stock	Nut	£1.55 £1.29
43	MO125670005/2 In stock	Washer	£4.08 £3.40
44	MO112001000/0 Available to backorder	Circlip Ø15	£1.84 £1.53
47	MO125950000/0 In stock	Valve	£5.34 £4.45
49	MO112540221/0 Available to backorder	Washer	£4.64 £3.87
50	MO133800001/0 Available to backorder	Faston Terminal	£1.39 £1.16
51	MO182001509/1 Available to backorder		£82.61 £68.84
