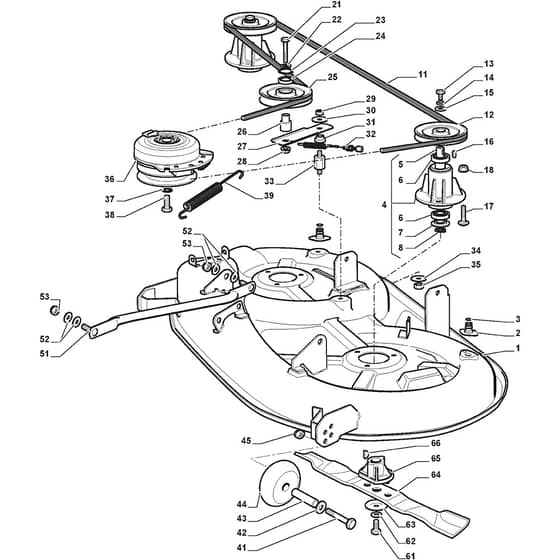

1538M-SD - 2015-2019 - 2T0530483/M15 - Mountfield Ride On Mower Cutting Plate Diagram

Description

Mountfield 1538M-SD Parts Diagram

Product Name - 1538M-SD

Model Year - 2015-2019

Model Type - SD 98

Art.N - 2T0530483/M15

Engine Model - Mountfield 7750 452 cc

	Part No.	Details
1	MO382564209/4 In stock	Cutting Plate Black From 01-9-2014	£366.02 £305.02
2	MO325033086/0 In stock	Water Hose Connection	£1.55 £1.29
3	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
4	MO382207204/1 In stock	Flange Assy From 01-9-2015	£102.06 £85.05
5	MO125020804/0 In stock	Blade Shaft	£35.20 £29.33
6	MO119216047/0 In stock	Bearing To 31-8-2014	£15.78 £13.15
7	MO325160501/1 Available to backorder	Dust Cover Disc	£1.55 £1.29
8	MO112609260/0 In stock	Seeger	£1.84 £1.53
11	MO135061504/0LC In stock	Belt	£26.66 £22.22
12	MO125601571/0 Available to backorder	Pulley	£30.70 £25.58
13	MO112793102/0 In stock	Screw	£1.55 £1.29
14	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
15	MO125670007/0 In stock	Washer	£1.97 £1.64
16	MO112139480/0 In stock	Feather	£1.70 £1.42
17	MO112818690/0 In stock	Screw	£1.55 £1.29
18	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
66	MO112139100/0 In stock	Woodruff Key 4 X 6.5 D.16 Uni6606 C40	£1.55 £1.29
