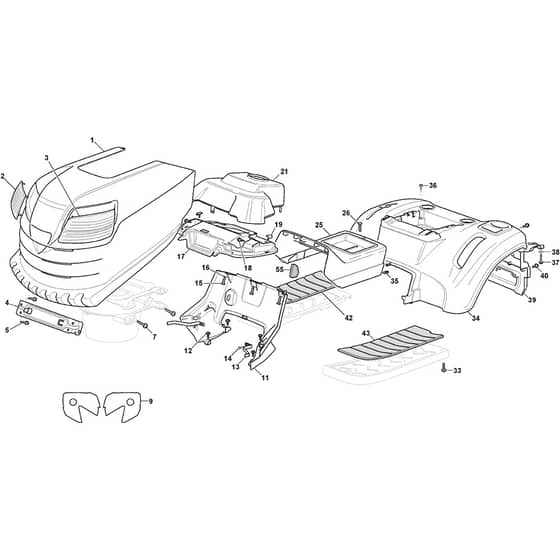

1538M-SD - 2015-2019 - 2T0530483/M15 - Mountfield Ride On Mower Body Diagram

Name: 1538M-SD - 2015-2019 - 2T0530483/M15 - Mountfield Ride On Mower Body Diagram
SKU: 1538m_sd_2t0530483_m15_body-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1538M-SD - 2015-2019 - 2T0530483/M15 - Mountfield Ride On Mower Body Diagram

Description

Mountfield 1538M-SD Parts Diagram

Product Name - 1538M-SD

Model Year - 2015-2019

Model Type - SD 98

Art.N - 2T0530483/M15

Engine Model - Mountfield 7750 452 cc

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382076978/0 Available to backorder	Engine Hood. Dark Red	£183.01 £152.51
2	MO325410887/0 Available to backorder	Right Grill	£9.16 £7.63
3	MO325410888/0 Available to backorder	Left Grill	£9.16 £7.63
4	MO325785317/0 Available to backorder	Engine Hood Support	£11.53 £9.61
5	MO112735402/0 Available to backorder	Screw	£1.55 £1.29
7	MO112728714/0 Available to backorder	Screw	£1.55 £1.29
9	MO114363452/0 Available to backorder	Light Reflected Label	£5.48 £4.57
11	MO325785298/0 Available to backorder	Dashboard Support	£29.56 £24.63
12	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
13	MO325270325/0 Available to backorder	Guide	£4.78 £3.98
14	MO112735120/0 Available to backorder	Screw From 01-9-2013 To 31-8-2018	£1.55 £1.29
14	MO112735599/0 Available to backorder	Screw To 31-8-2013	£1.55 £1.29
15	MO112735406/0 Available to backorder	Screw	£1.55 £1.29
55	MO325207191/0 Available to backorder	Central Cover Close Cap	£1.97 £1.64
