1538M-SD - 2009-2013 - 2T3244483/UM9 - Mountfield Ride On Mower Options Diagram

Name: 1538M-SD - 2009-2013 - 2T3244483/UM9 - Mountfield Ride On Mower Options Diagram
SKU: 1538m_sd_2t3244483_um9_options-group
Price: 1.29 GBP
Availability: InStock

Part No. 1538m_sd_2t3244483_um9_options-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1538M-SD - 2009-2013 - 2T3244483/UM9 - Mountfield Ride On Mower Options Diagram

Description

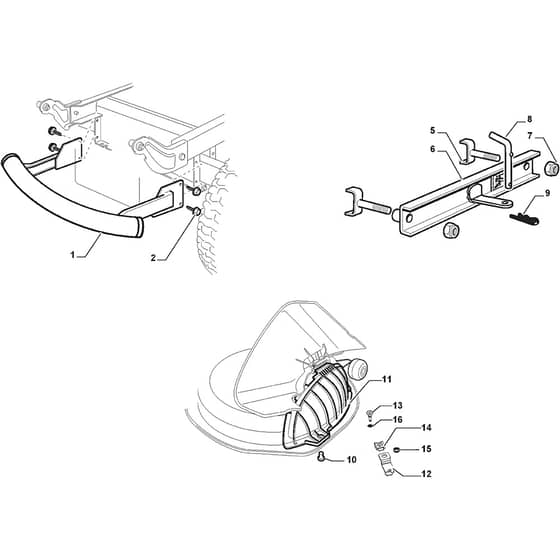

Mountfield 1538M-SD Parts Diagram

Product Name - 1538M-SD

Model Year - 2009-2013

Model Type - SD 98

Art.N - 2T3244483/UM9

Engine Model -

	Part No.	Details
1	MO382869038/0 Available to backorder	Muffler Protection	£39.42 £32.85
2	MO112735599/0 In stock	Screw	£1.55 £1.29
5	MO382650211/0 Available to backorder	Stiffening	£5.06 £4.22
6	MO382033111/0 Available to backorder	Rod	£33.79 £28.16
7	MO112155000/0 In stock	Nut	£1.55 £1.29
8	MO125510021/1 In stock	Hitch Pin	£11.10 £9.25
9	MO124487999/0 Available to backorder	Spring Pin	£1.84 £1.53
10	MO112815206/0 In stock	Screw	£1.55 £1.29
11	MO325140105/0 In stock	Deflector	£12.67 £10.56
12	MO325785471/0 In stock	Pin	£2.94 £2.45
12	MO125510111/0 Available to backorder	Pin	£2.40 £2.00
14	MO112437507/0 Available to backorder	Rapid Fixing Plate	£1.70 £1.42
15	MO112154510/0 In stock	Nut	£1.55 £1.29
16	MO112604899/0 In stock	Starlock Washer Rpco 308 D.8	£1.55 £1.29
