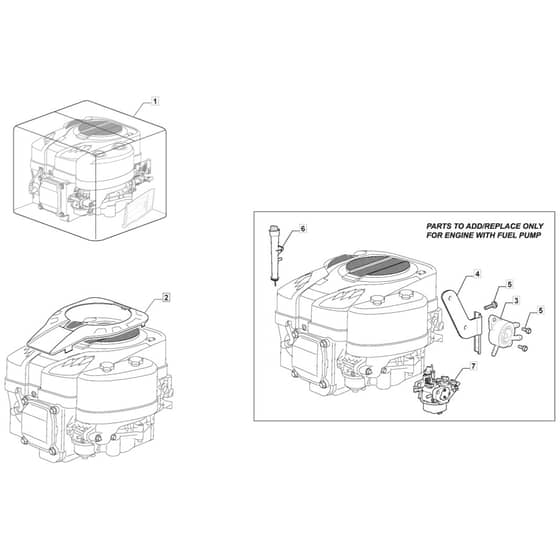

1538M - 2020 - 2T2520483/M20 - Mountfield Ride On Mower Fuel Pump Diagram

Description

Mountfield 1538M Parts Diagram

Product Name - 1538M

Model Year - 2020

Model Type - MPNS 98

Art.N - 2T2520483/M20

Engine Model - ST 500 Powered by STIGA

	Part No.	Details
2	MO325055002/0 Available to backorder	Hood. Black	£13.44 £11.20
2	MO325055001/0 Available to backorder	Cover Ring. Yellow	£13.44 £11.20
3	MO118551578/0 Available to backorder	Fuel Pump	£61.93 £51.61
4	MO118550348/1 Available to backorder	Fuel Pump Stifferning	£24.37 £20.31
5	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
6	MO118550444/1 Available to backorder	Oil Filler Assy	£23.81 £19.84
7	MO118552514/0 Available to backorder	Carburettor	£63.30 £52.75
