1538H-SD - 2024-2025 - 2T0620483/M25 - Mountfield Ride On Mower Transmission. Diagram

Name: 1538H-SD - 2024-2025 - 2T0620483/M25 - Mountfield Ride On Mower Transmission. Diagram
SKU: 1538h_sd_2t0620483_m25_transmission_-group
Price: 1.11 GBP
Availability: InStock

Part No. 1538h_sd_2t0620483_m25_transmission_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1538H-SD - 2024-2025 - 2T0620483/M25 - Mountfield Ride On Mower Transmission. Diagram

Description

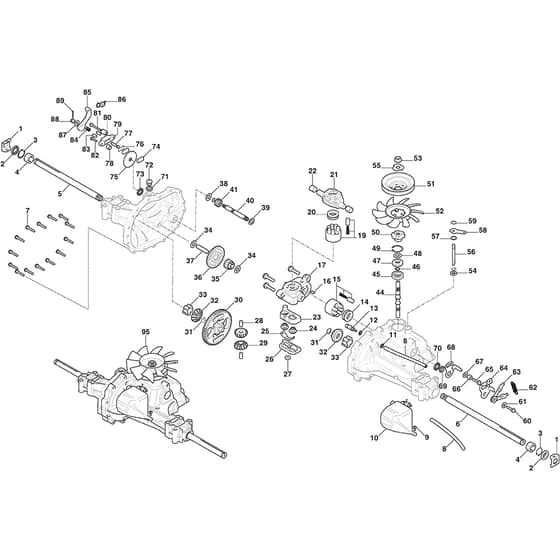

Mountfield 1538H-SD Parts Diagram

Product Name - 1538H-SD

Model Year - 2024-2025

Model Type - SDNS 98 Hydro

Art.N - 2T0620483/M25

Engine Model -

	Part No.	Details
1	MO118870341/0 Available to backorder	Plate	£7.86 £6.55
2	MO118870376/0 Available to backorder	Seal	£3.73 £3.11
3	MO112610095/0 Available to backorder	Snap Ring	£1.70 £1.42
4	MO118870381/0 Available to backorder	Collar	£4.51 £3.76
5	MO118870355/0 Available to backorder	Shaft	£59.26 £49.38
6	MO118870356/0 Available to backorder	Shaft	£52.34 £43.62
7	MO112674550/0 Available to backorder	Screw	£1.63 £1.36
8	MO118870380/0 Available to backorder	Tube	£5.15 £4.29
9	MO112727796/0 Available to backorder	Screw	£1.63 £1.36
10	MO118870335/0 Available to backorder	Kit-Expansion Tank	£23.65 £19.71
11	MO118870389/0 Available to backorder	O-Ring	£3.97 £3.31
12	MO118870415/0 Available to backorder	O-Ring	£2.80 £2.33
13	MO118870332/0 Available to backorder	Fitting	£9.18 £7.65
14	MO118870375/0 Available to backorder	Bearing	£28.19 £23.49
15	MO118870365/1 Available to backorder	Pump Block Assy	£119.76 £99.80
16	MO118870340/0 Available to backorder	Push Rod	£3.86 £3.22
17	MO118870331/1 Available to backorder	Center Section Kit	£123.36 £102.80
19	MO118870364/1 Available to backorder	Cylinder Block	£119.76 £99.80
20	MO118870374/0 Available to backorder	Bearing	£28.19 £23.49
22	MO118870383/0 Available to backorder	Collar	£4.80 £4.00
28	MO118870350/0 Available to backorder	Kit-Gears And Pins	£3.86 £3.22
29	MO118870345/0 Available to backorder	Gear Z.12	£6.56 £5.47
30	MO118870357/0 Available to backorder	Gear Z.53	£35.68 £29.73
31	MO118870354/0 Available to backorder	Retaining Ring	£4.96 £4.13
32	MO118870346/0 Available to backorder	Gear Z.12	£6.56 £5.47
33	MO118870382/0 Available to backorder	Bushing	£4.62 £3.85
34	MO118870412/0 Available to backorder	Washer	£3.34 £2.78
35	MO118870347/0 Available to backorder	Gear Z.11	£7.09 £5.91
36	MO118870348/0 Available to backorder	Gear Z.48	£11.84 £9.87
37	MO118870344/0 Available to backorder	Pin	£3.76 £3.13
38	MO118870370/0 Available to backorder	Washer	£3.18 £2.65
39	MO118870369/0 Available to backorder	Washer	£3.18 £2.65
40	MO118870342/0 Available to backorder	Shaft	£52.58 £43.82
41	MO118870343/0 Available to backorder	Gear Z.13	£6.16 £5.13
44	MO118870358/0 Available to backorder	Shaft	£48.50 £40.42
46	MO112609200/0 Available to backorder	Seeger	£1.63 £1.36
47	MO118870377/0 Available to backorder	Seal	£3.86 £3.22
48	MO118870371/0 Available to backorder	Washer	£3.18 £2.65
49	MO112610800/0 In stock	Seeger	£1.70 £1.42
50	MO118870351/0 Available to backorder	Hub. Pulley	£6.78 £5.65
51	MO118870349/0 Available to backorder	Belt Pulley	£28.58 £23.82
52	MO118870334/0 Available to backorder	Impeller	£14.21 £11.84
54	MO118870379/0 Available to backorder	Seal	£3.73 £3.11
55	MO118870367/0 Available to backorder	Washer	£4.13 £3.44
56	MO118870352/0 Available to backorder	Rod	£6.40 £5.33
57	MO112000955/0 Available to backorder	Circlip Ø8	£1.33 £1.11
58	MO118870353/0 Available to backorder	Arm	£6.53 £5.44
59	MO118870368/0 Available to backorder	Retaining Ring	£3.18 £2.65
60	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
61	MO118804818/0 Available to backorder	Washer	£2.11 £1.76
62	MO118870390/0 Available to backorder	Spring	£5.70 £4.75
64	MO118870339/0 Available to backorder	Arm	£15.79 £13.16
65	MO112793701/0 In stock	Screw	£1.55 £1.29
66	MO118870386/0 Available to backorder	Collar	£4.51 £3.76
68	MO118870337/0 Available to backorder	Arm	£13.12 £10.93
69	MO118870385/0 Available to backorder	Collar	£4.51 £3.76
95	MO118401022/0 Available to backorder		£751.90 £626.58
