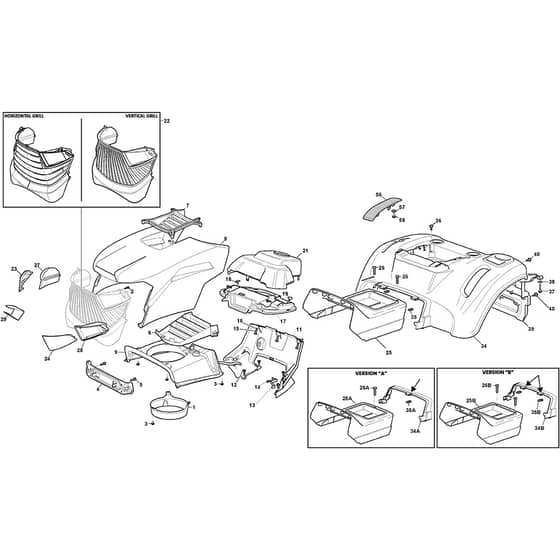

1538H-SD - 2024-2025 - 2T0620483/M25 - Mountfield Ride On Mower Body Diagram

Name: 1538H-SD - 2024-2025 - 2T0620483/M25 - Mountfield Ride On Mower Body Diagram
SKU: 1538h_sd_2t0620483_m25_body-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1538H-SD - 2024-2025 - 2T0620483/M25 - Mountfield Ride On Mower Body Diagram

Description

Mountfield 1538H-SD Parts Diagram

Product Name - 1538H-SD

Model Year - 2024-2025

Model Type - SDNS 98 Hydro

Art.N - 2T0620483/M25

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325108105/0 Available to backorder	Air Conveyor	£9.85 £8.21
2	MO112728706/0 In stock	Screw	£1.55 £1.29
4	MO325785551/1 Available to backorder	Engine Hood Support	£10.42 £8.68
5	MO112735402/0 Available to backorder	Screw	£1.55 £1.29
6	MO325263316/0 Available to backorder	Air Intake Grill Black	£19.39 £16.16
7	MO325263315/0 Available to backorder	Air Intake Grill Black	£16.25 £13.54
8	MO325077014/0 Available to backorder	Engine Hood Red Dark Red	£147.80 £123.17
9	MO325108110/0 Available to backorder	Air Conveyor Black	£54.90 £45.75
11	MO325785298/0 Available to backorder	Dashboard Support	£29.56 £24.63
12	MO112728697/0 In stock	Screw	£1.55 £1.29
13	MO325270325/0 Available to backorder	Guide	£4.78 £3.98
14	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
15	MO112735406/0 Available to backorder	Screw	£1.55 £1.29
16	MO112523040/0 In stock	Washer	£1.49 £1.24
17	MO325120259/2 Available to backorder	Dashboard	£35.20 £29.33
18	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
19	MO325260003/0 Available to backorder	Grommet	£1.55 £1.29
21	MO325120203/1 Available to backorder	Dashboard Cover	£18.02 £15.02
22	MO325077004/1 Available to backorder	Frontal Bonnet Black - Horizontal Grill	£60.54 £50.45
23	MO325410939/0 Available to backorder	Right Headlight Transparent	£9.16 £7.63
24	MO325410940/0 Available to backorder	Left Headlight Transparent	£9.16 £7.63
25	MO325110548/0 Available to backorder	Black Central Cover 2 Fixing Holes - Version B	£39.61 £33.01
25	MO325110541/0 In stock	Black Central Cover 1 Fixing Hole - Version A	£38.83 £32.36
27	MO325785597/0 Available to backorder	Right Lamp Support	£14.58 £12.15
28	MO325785598/0 Available to backorder	Left Lamp Support	£14.58 £12.15
29	MO114372768/0 Available to backorder	Light Reflected Label	£4.37 £3.64
34	MO325110477/0 Available to backorder	Red Wheels Cover 1 Hook - Version A	£120.64 £100.53
34	MO325110477/1 Available to backorder	Red Wheels Cover 2 Hooks - Version B	£154.86 £129.05
35	MO112437506/0 Available to backorder	Plate Version A	£2.53 £2.11
39	MO325547208/3 Available to backorder	Rear Plate. Black	£19.63 £16.36
56	MO325207190/2 Available to backorder	Cover Not needed for Gear Models	£6.13 £5.11
57	MO112523050/0 In stock	Washer	£1.55 £1.29
58	MO112792611/0 Available to backorder	Screw Te M8 X 16 Uni 5739 Acc.8.8	£1.55 £1.29
