1538H-SD - 2015-2020 - 2T0630483/M15 - Mountfield Ride On Mower Cutting plate lifting Diagram

Description

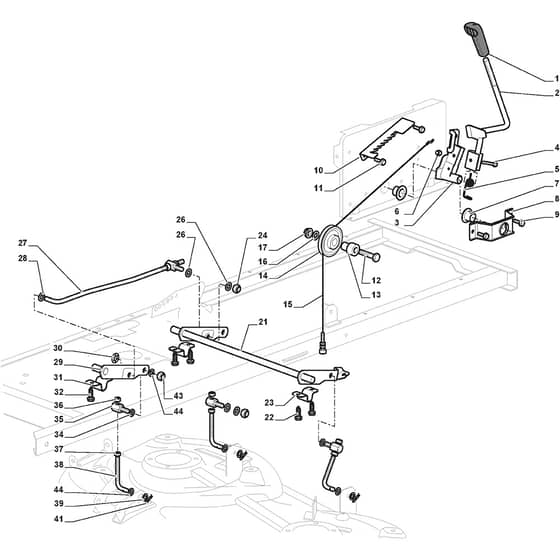

Mountfield 1538H-SD Parts Diagram

Product Name - 1538H-SD

Model Year - 2015-2020

Model Type - SD 98 Hydro

Art.N - 2T0630483/M15

Engine Model - Mountfield 7750 452 cc

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325394533/0 Available to backorder	Knob	£3.10 £2.58
2	MO382318229/0 In stock	Lever	Was £15.28 £12.73 Special Price £9.79 £8.16
3	MO382318231/1 Available to backorder	Axle	£7.03 £5.86
4	MO112674700/0 Available to backorder	Screw	£1.55 £1.29
5	MO125430261/0 Available to backorder	Spring	£1.40 £1.17
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO325038006/0 Available to backorder	Bushing	£1.55 £1.29
8	MO325785297/0 Available to backorder	Support	£6.20 £5.17
10	MO325735515/0 Available to backorder	Steering Sector	£8.02 £6.68
11	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
12	MO112793701/0 Available to backorder	Screw	£1.49 £1.24
13	MO125040636/1 Available to backorder	Bushing	£2.81 £2.34
14	MO125601579/0 Available to backorder	Pulley	£2.81 £2.34
15	MO382004620/0 In stock	Deck Lifting Wire	£14.86 £12.38
16	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
17	MO112293201/0 In stock	Nut	£1.69 £1.41
24	MO112155000/0 In stock	Nut	£1.55 £1.29
26	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
27	MO125033109/0 In stock	Lifting Lever Connetion Rod Assy for correct replacement. please check Service Bulletin RO_043 From 01-9-2011	£9.43 £7.86
28	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
29	MO382318293/1 Available to backorder	Axle	£12.38 £10.32
30	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
31	MO325547231/1 Available to backorder	Lifting Deck Axle Plate	£4.37 £3.64
32	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
35	MO125510107/1 Available to backorder	Pin	£5.21 £4.34
37	MO112295200/0 In stock	Nut	£1.40 £1.17
38	MO125840012/1 Available to backorder	Tie Rod	£14.35 £11.96
41	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
43	MO112156602/0 In stock	Nut	£1.40 £1.17
44	MO325670008/1 In stock	Anti-Friction Washer 10.8 X 19 X 0.8	£1.55 £1.29
