1538H-SD - 2011-2013 - 2T0620483/M10 - Mountfield Ride On Mower Seat and Steering Wheel Diagram

Name: 1538H-SD - 2011-2013 - 2T0620483/M10 - Mountfield Ride On Mower Seat and Steering Wheel Diagram
SKU: 1538h_sd_2t0620483_m10_seat_and_steering_wheel-group
Price: 1.29 GBP
Availability: InStock

Part No. 1538h_sd_2t0620483_m10_seat_and_steering_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

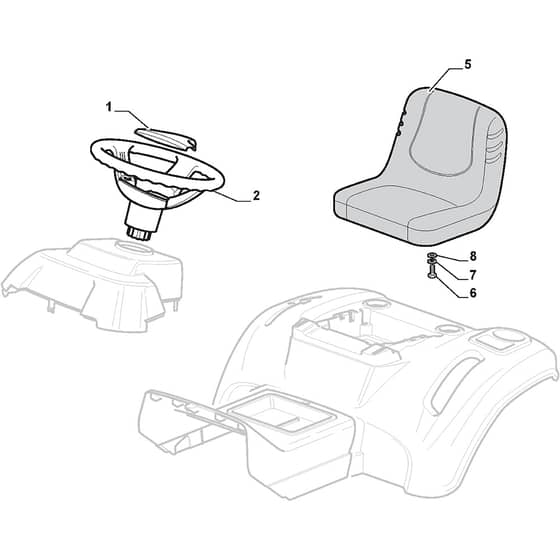

1538H-SD - 2011-2013 - 2T0620483/M10 - Mountfield Ride On Mower Seat and Steering Wheel Diagram

Description

Mountfield 1538H-SD Parts Diagram

Product Name - 1538H-SD

Model Year - 2011-2013

Model Type - SD 98 Hydro

Art.N - 2T0620483/M10

Engine Model -

	Part No.	Details
1	MO325580503/0 Available to backorder	Steering Plate Cover	£6.05 £5.04
2	MO325961219/0 Available to backorder	Steering Wheel	£36.59 £30.49
5	MO125722463/0 Available to backorder	Seat To 31-8-2017	£204.13 £170.11
5	MO125722483/0 Available to backorder	Seat From 01-9-2017	£190.04 £158.37
6	MO112792611/0 In stock	Screw	£1.55 £1.29
7	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
8	MO112523060/0 In stock	Washer M8 8.4 X 24 X 2	£1.55 £1.29
