1538H - 2020-2021 - 2T2620483/M20 - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield 1538H Parts Diagram

Product Name - 1538H

Model Year - 2020-2021

Model Type - MPNS 98 Hydro

Art.N - 2T2620483/M20

Engine Model - ST 500 Powered by STIGA

Be the first to review this product

0 product questions

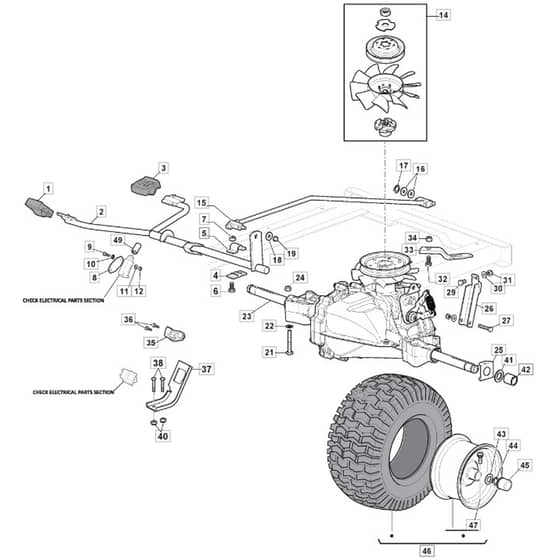

	Part No.	Details
1	MO325110274/0 Available to backorder	Clamp Cover Front	£7.19 £5.99
2	MO382000574/2 Available to backorder	Drive Pedal	£53.50 £44.58
3	MO325110331/0 Available to backorder	Clamp Cover Rear	£7.03 £5.86
4	MO325785350/0 Available to backorder	Support	£1.55 £1.29
5	MO325547231/1 Available to backorder	Plate	£4.37 £3.64
7	MO118870111/0 Available to backorder	Seal	£11.50 £9.58
8	MO327546019/0 Available to backorder	Neutral Switch Fixing Plate	£1.40 £1.17
9	MO112735602/0 Available to backorder	Screw	£1.55 £1.29
10	MO112540020/0 Available to backorder	Washer	£1.55 £1.29
11	MO112581100/0 Available to backorder	Grower	£1.33 £1.11
12	MO112290791/0 Available to backorder	Nut	£1.55 £1.29
14	MO1139-2201-01 Available to backorder	Kit. Fan Pulley	£161.89 £134.91
15	MO382000573/1 Available to backorder	Rod	£30.97 £25.81
16	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
17	MO112000940/0 Available to backorder	Benzing Ring	£1.55 £1.29
18	MO112523040/0 In stock	Washer	£1.49 £1.24
19	MO112154510/0 In stock	Nut	£1.55 £1.29
21	MO112691600/0 Available to backorder	Screw	£1.82 £1.52
22	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
23	MO118400921/0 Available to backorder	Transmission (Hydro-Gear T2-Adbf-2X3C-1Rx1)	£764.64 £637.20
24	MO112155000/0 In stock	Nut	£1.55 £1.29
25	MO325670026/0 Available to backorder	Washer	£7.46 £6.22
26	MO325785349/1 Available to backorder	Support	£12.73 £10.61
27	MO112691700/0 In stock	Screw	£1.82 £1.52
29	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
30	MO118870079/0 Available to backorder	Seal	£10.90 £9.08
30	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
32	MO112791213/1 In stock	Screw	£1.55 £1.29
33	MO325318251/0 In stock	Lever	£3.24 £2.70
35	MO325060034/1 Available to backorder	Cam	£2.12 £1.77
36	MO112735403/0 Available to backorder	Screw	£1.55 £1.29
37	MO325774573/0 Available to backorder	Clamp	£5.21 £4.34
38	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
40	MO118870090/0 Available to backorder	Swashplate	£123.06 £102.55
41	MO125670005/2 In stock	Washer	£4.08 £3.40
42	MO125160058/1 Available to backorder	Spacer	£4.08 £3.40
44	MO112001010/0 Available to backorder	Benzing Ring	£1.82 £1.52
45	MO322110233/0 In stock	Hub Cover Standard Black	£1.70 £1.42
46	MO382680104/0 Available to backorder	Wheel Assy	£160.28 £133.57
47	MO125950000/0 Available to backorder	Valve	£5.35 £4.46
49	MO118203851/0 Available to backorder	Pvc Cap [Black]	£1.20 £1.00
61	MO118870092/0 Available to backorder	Shaft	£112.09 £93.41
70	MO118870125/0 Available to backorder	Pump Block Assy	£167.41 £139.51
74	MO118870093/0 Available to backorder	Bearing	£48.10 £40.08
75	MO1139-2063-01 Available to backorder	Cylinder Block	£289.99 £241.66
79	MO1139-2021-01 Available to backorder	Thrust Bearing	£52.34 £43.62
100	MO118870072/0 Available to backorder	Retaining Ring	£7.42 £6.18
103	MO118870114/0 Available to backorder	Shaft	£127.32 £106.10
104	MO118870113/0 Available to backorder	Shaft	£212.20 £176.83
106	MO118870085/0 Available to backorder	Bushing	£9.05 £7.54
110	MO1139-2204-01 Available to backorder	Shaft	£10.63 £8.86
120	MO118870066/0 Available to backorder	Brake Pad	£9.43 £7.86
121	MO118870101/0 Available to backorder	Brake	£24.31 £20.26
130	MO118870088/0 Available to backorder	Brake Lever	£53.76 £44.80
134	MO118870078/0 Available to backorder	Spring	£7.88 £6.57
166	MO118870104/0 Available to backorder	Bushing	£5.93 £4.94
167	MO118870089/0 Available to backorder	Spring	£10.98 £9.15
180	MO118870112/0 Available to backorder	Plate	£14.58 £12.15
195	MO118870126/0 Available to backorder	Kit-Gears And Pins	£69.31 £57.76
201	MO118870127/0 Available to backorder	Center Section Kit	£443.42 £369.52
203	MO118870122/0 Available to backorder	Kit-Expansion Tank	£77.42 £64.52
205	MO118870124/0 Available to backorder	Kit-Seal	£72.14 £60.12
206	MO118870129/0 In stock	Hydro Gear Fan [T2-Adbf-2X3C-1Rx1]	£56.32 £46.93
