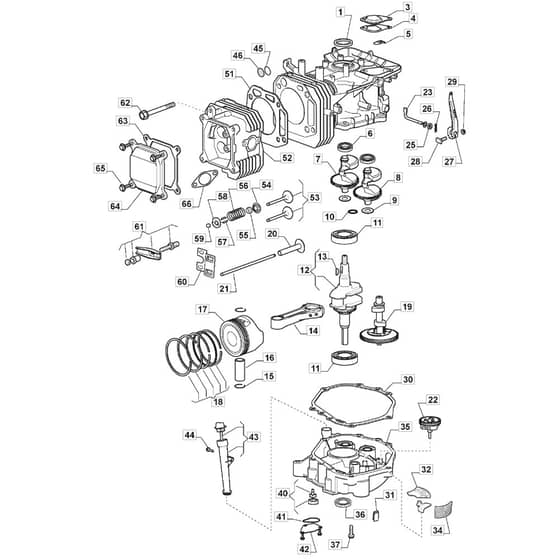

1530M - 2020 - 2T2020483/M20 - Mountfield Ride On Mower Engine Cylinder Diagram

Name: 1530M - 2020 - 2T2020483/M20 - Mountfield Ride On Mower Engine Cylinder Diagram
SKU: 1530m_2t2020483_m20_engine_cylinder-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1530M - 2020 - 2T2020483/M20 - Mountfield Ride On Mower Engine Cylinder Diagram

Description

Mountfield 1530M Parts Diagram

Product Name - 1530 M

Model Year - 2020

Model Type - MPNS 84

Art.N - 2T2020483/M20

Engine Model - ST 500

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118551418/0	Oil Seal	Out of stock	£10.92 £9.10
4	MO118551229/0	Gasket	Out of stock	£3.53 £2.94
6	MO118551284/0	Bearing	Out of stock	£12.86 £10.72
7	MO118551242/0	Counterweight	Out of stock	£50.11 £41.76
8	MO118551243/0	Counterweight	Out of stock	£50.11 £41.76
9	MO118551282/0	Washer	Out of stock	£1.90 £1.58
10	MO118551286/0	O Ring	Out of stock	£1.63 £1.36
11	MO118550227/0	Ball Bearing	Out of stock	£20.58 £17.15
12	MO118550232/0	Crankshaft	Out of stock	£189.62 £158.02
13	MO118550288/0	Woodruff Key	Out of stock	£5.64 £4.70
14	MO118550231/1	Connecting Rod Assy	Out of stock	£54.18 £45.15
15	MO118551283/0	Washer. Piston Pin	Out of stock	£1.36 £1.13
16	MO118551241/0	Piston Pin	Out of stock	£7.03 £5.86
17	MO118551240/0	Piston	Out of stock	£39.28 £32.73
18	MO118550510/0	Piston. Ring Set	Out of stock	£33.86 £28.22
19	MO118551511/0	Camshaft Assy	Out of stock	£107.68 £89.73
20	MO118551252/0	Valve Lifter	Out of stock	£5.42 £4.52
21	MO118550242/1	Push Rods Assy	Out of stock	£5.50 £4.58
22	MO118551506/0	Speed Governor Assy	Out of stock	£19.57 £16.31
23	MO118551505/0	Shaft. Governor Arm	Out of stock	£9.55 £7.96
25	MO118551285/0	Oil Seal	Out of stock	£3.20 £2.67
30	MO118550355/1	Crankcase Gasket	Out of stock	£16.25 £13.54
32	MO118551257/1	Cover	Out of stock	£7.31 £6.09
34	MO118551256/1	Oil Strainer	Out of stock	£4.07 £3.39
35	MO118551207/0	Crankcase Cover	Out of stock	£162.53 £135.44
37	MO112691115/0	Screw	Out of stock	£1.49 £1.24
40	MO118550224/1	Oil Pump	Out of stock	£20.11 £16.76
41	MO118551507/0	Gasket	Out of stock	£2.30 £1.92
42	MO118550223/0	Oli Pump Cover	Out of stock	£5.42 £4.52
43	MO118550444/1	Oil Filler Assy	Out of stock	£22.90 £19.08
45	MO118551230/0	Breather Valve	Out of stock	£2.70 £2.25
46	MO118551228/0	Cover	Out of stock	£4.33 £3.61
51	MO118551236/0	Gasket	Out of stock	£14.63 £12.19
52	MO118551231/0	Cylinder Head	Out of stock	£162.53 £135.44
54	MO118551245/0	Plate	Out of stock	£2.82 £2.35
55	MO118551248/0	Gasket	Out of stock	£7.98 £6.65
56	MO118550529/0	Spring Valve	Out of stock	£5.82 £4.85
57	MO118551247/0	Valve Keeper	Out of stock	£1.49 £1.24
58	MO118551246/0	Retainer	Out of stock	£4.48 £3.73
59	MO118551244/0	Valve Cap	Out of stock	£2.84 £2.37
60	MO118551255/0	Plate	Out of stock	£4.33 £3.61
61	MO118551510/0	Valve Arm Set	Out of stock	£7.18 £5.98
63	MO118551531/0	Gasket	In stock	£15.12 £12.60
64	MO118551534/0	Cover Comp. Head	In stock	£7.68 £6.40
65	MO118551535/0	Bolt	In stock	£2.17 £1.81
66	MO118551272/0	Muffler Gasket	Out of stock	£2.44 £2.03
