Description

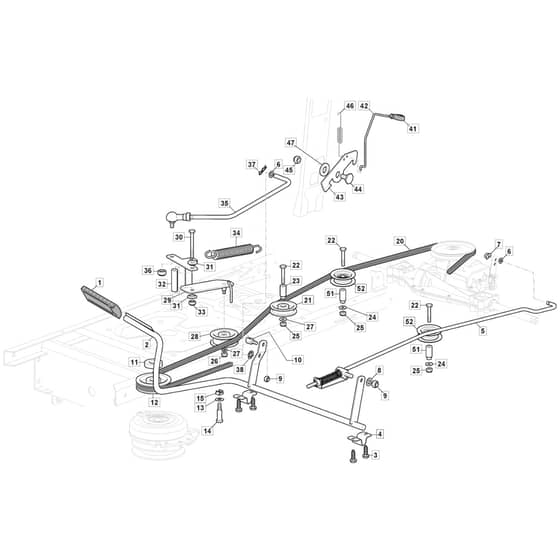

Mountfield 1530M Parts Diagram

Product Name - 1530 M

Model Year - 2020

Model Type - MPNS 84

Art.N - 2T2020483/M20

Engine Model - ST 500

Ref. Img. Part No. Details
  1 Clamp Cover
Clamp Cover
MO325110391/0 Out of stock
Clamp Cover
£6.50 £5.42

  2 Pedal
Pedal
MO382500047/2 Out of stock
Pedal
£51.47 £42.89

  3 Screw
Screw
MO112735599/0 Out of stock
Screw
£1.49 £1.24

  4 Plate
Plate
MO325547231/1 Out of stock
Plate
£4.20 £3.50

  5 Rod
Rod
MO382000568/0 In stock
Rod
Was £20.11 £16.76 Special Price £13.48 £11.23

  6 Washer
Washer
MO112521350/0 In stock
Washer
£1.63 £1.36

  7 Plate
Plate
MO112436050/0 In stock
Plate
£1.75 £1.46

  8 Antifriction Washer
Antifriction Washer
MO325670011/0 Out of stock
Antifriction Washer
£1.49 £1.24

  10 Pin
Pin
MO125510166/0 Out of stock
Pin
£3.38 £2.82

  11 Spacer
Spacer
MO125160021/0 Out of stock
Spacer
£5.63 £4.69

  12 Pulley
Pulley
MO125601567/0 Out of stock
Pulley
£28.44 £23.70

  13 Washer
Washer
MO112524010/0 Out of stock
Washer
£1.75 £1.46

  14 Belt Guide Peg
Belt Guide Peg
MO125580030/0 Out of stock
Belt Guide Peg
£4.08 £3.40

  15 Nut
Nut
MO112360425/0 Out of stock
Nut
£1.75 £1.46

  20 Belt
Belt
MO135062018/0LC In stock
Belt
£35.42 £29.52

  21 Pulley Bearing hole ø15 (Plastic)
Pulley Bearing hole ø15 (Plastic)
MO125601613/0 In stock
Pulley Bearing hole ø15 (Plastic)
£11.64 £9.70

  21 Pulley Bearing hole ø15 (Steel)
Pulley Bearing hole ø15 (Steel)
MO325601599/0 In stock
Pulley Bearing hole ø15 (Steel)
£17.52 £14.60

  22 Screw
Screw
MO112691400/0 Out of stock
Screw
£1.49 £1.24

  23 Spacer
Spacer
MO125160107/0 Out of stock
Spacer
£2.70 £2.25

  24 Washer
Washer
MO112523060/0 In stock
Washer
£1.49 £1.24

  25 Nut
Nut
MO112155000/0 Out of stock
Nut
£1.63 £1.36

  28 Pulley
Pulley
MO125601554/0 In stock
Pulley
£23.40 £19.50

  29 Lever
Lever
MO382318283/0 Out of stock
Lever
£17.52 £14.60

  30 Screw
Screw
MO112691600/0 Out of stock
Screw
£1.75 £1.46

  31 Bushing
Bushing
MO125038021/0 Out of stock
Bushing
£1.21 £1.01

  32 Spacer
Spacer
MO125160027/0 Out of stock
Spacer
£2.44 £2.03

  34 Spring
Spring
MO125430262/0 Out of stock
Spring
£5.54 £4.62

  35 Tie Rod
Tie Rod
MO382820016/1 Out of stock
Tie Rod
£16.12 £13.43

  36 Nut
Nut
MO112293201/0 In stock
Nut
£1.63 £1.36

  37 Cotter Pin
Cotter Pin
MO124487997/0 Out of stock
Cotter Pin
£1.49 £1.24

  38 Crown Fastener
Crown Fastener
MO112604899/0 In stock
Crown Fastener
£1.63 £1.36

  41 Knob
Knob
MO125394509/1 Out of stock
Knob
£2.44 £2.03

  42 Rod
Rod
MO125033113/0 Out of stock
Rod
£3.38 £2.82

  43 Hook
Hook
MO325253011/1 Out of stock
Hook
£3.53 £2.94

  44 Pin
Pin
MO122524970/3 Out of stock
Pin
£1.63 £1.36

  46 Spring
Spring
MO125430213/0 Out of stock
Spring
£1.63 £1.36

  51 Spacer
Spacer
MO125160111/0 Out of stock
Spacer
£4.07 £3.39

  52 Pulley (Steel)
Pulley (Steel)
MO125601612/0 In stock
Pulley (Steel)
£32.76 £27.30
