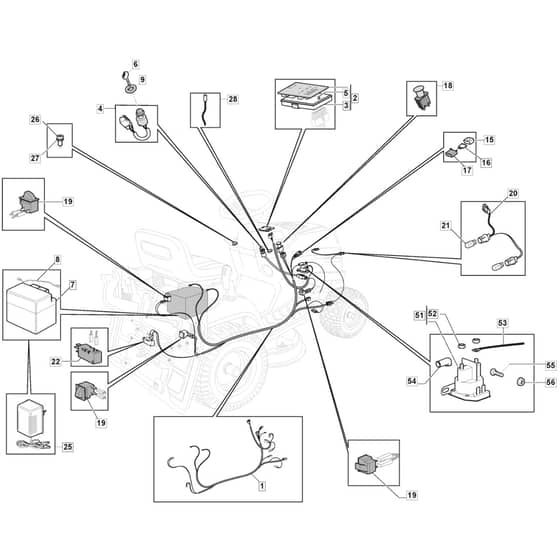

Mountfield 1530M Parts Diagram

Product Name - 1530 M

Model Year - 2015-2019

Model Type - MP 84

Art.N - 2T2020483/M15

Engine Model - 7750 452 cc

Be the first to review this product

0 product questions

	Part No.	Details
1	MO182040198/3 Available to backorder	Complete Wiring Assembly	£120.95 £100.79
2	MO382722472/1 In stock	Electronic Card	£62.08 £51.73
3	MO325600090/1 Available to backorder	Card Protection From S.N 115593	£4.66 £3.88
3	MO125722437/0 Available to backorder	Card Protection To S.N 115592	£113.17 £94.31
4	MO118450075/1 In stock	Starting Switch	£24.22 £20.18
5	MO112735105/0 Available to backorder	Screw	£1.55 £1.29
6	MO118210023/0 In stock	Starting Key	£7.03 £5.86
7	MO118120068/0 In stock	Battery 12V 18Ah	£113.48 £94.57
8	MO125430265/1 Available to backorder	Spring	£1.82 £1.52
9	MO118400863/0 Available to backorder	Screwed Ring	£1.69 £1.41
15	MO133215000/0 Available to backorder	Cover	£3.52 £2.93
16	MO133340040/0 Available to backorder	Fuse 10 A	£2.26 £1.88
16	MO133340036/0 Available to backorder	Fuse 25 A	£1.69 £1.41
17	MO133500007/0 Available to backorder	Fuse Carrier	£7.31 £6.09
18	MO118450073/0 In stock	Clutch Switch Red	£14.92 £12.43
19	MO119410622/1 In stock	Microswitch	£6.62 £5.52
20	MO182040186/0 Available to backorder	Headlights Cable [Led]	£10.91 £9.09
21	MO118459100/0 Available to backorder	Lamp For Lights	£2.12 £1.77
22	MO119410605/1 In stock	Microswitch	£39.42 £32.85
25	MO1134-9250-01 In stock	Battery Charger 12V 1A - Uk Plugg	£60.06 £50.05
26	MO325605003/0 In stock	Push Button Reverse Gear	£30.77 £25.64
27	MO325256250/0 Available to backorder	Screwed Ring	£2.53 £2.11
28	MO182040174/0 Available to backorder	Lamp Holder Cable Assy	£5.48 £4.57
51	MO118736112/0 In stock	Starter Relay	£38.00 £31.67
52	MO9743-5121-32 Available to backorder	Nut To S.N 88626	£1.40 £1.17
52	MO112361005/0 Available to backorder	Nut From S.N 88627	£4.22 £3.52
53	MO125065002/0 Available to backorder	Cable	£10.49 £8.74
54	MO118564864/1 Available to backorder	Protection	£5.92 £4.93
55	MO112790781/0 In stock	Screw	£1.55 £1.29
56	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
