1530H - 2020-2021 - 2T2120483/M20 - Mountfield Ride On Mower Deck Lifting Diagram

Description

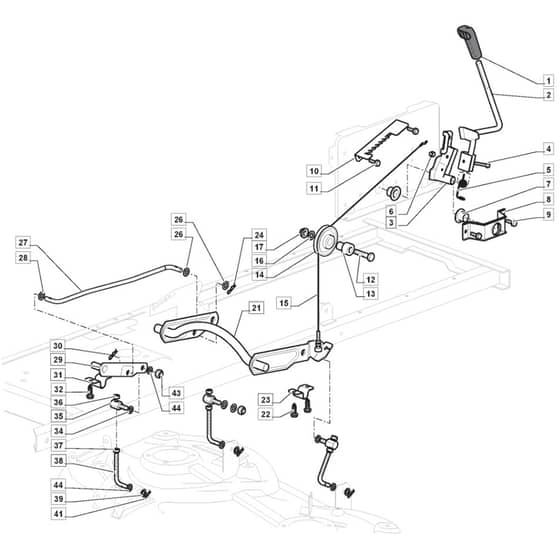

Mountfield 1530H Parts Diagram

Product Name - 1530 H

Model Year - 2020-2021

Model Type - MPNS 84 Hydro

Art.N - 2T2120483/M20

Engine Model - ST 500

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325394533/0	Knob	Out of stock	£2.98 £2.48
2	MO382318255/0	Lever	Out of stock	£13.40 £11.17
3	MO382318231/1	Lifting Axle Assy	Out of stock	£6.77 £5.64
4	MO112674700/0	Screw	Out of stock	£1.63 £1.36
5	MO125430261/0	Spring	Out of stock	£1.36 £1.13
6	MO112154510/0	Nut	In stock	£1.63 £1.36
7	MO325038006/0	Bushing	Out of stock	£1.49 £1.24
8	MO325785297/0	Support	Out of stock	£5.96 £4.97
10	MO325735515/0	Steering Sector	Out of stock	£7.72 £6.43
11	MO125943009/0	Screw	Out of stock	£1.56 £1.30
12	MO112793701/0	Screw	Out of stock	£1.63 £1.36
13	MO125040636/1	Bushing	Out of stock	£2.70 £2.25
14	MO125601579/0	Pulley	Out of stock	£2.70 £2.25
15	MO382004620/0	Wire	In stock	£13.56 £11.30
16	MO112523060/0	Washer	In stock	£1.49 £1.24
17	MO112293201/0	Nut	In stock	£1.63 £1.36
21	MO382318297/1	Axle	Out of stock	£28.32 £23.60
22	MO112735599/0	Screw	Out of stock	£1.49 £1.24
23	MO325547231/1	Plate	Out of stock	£4.20 £3.50
24	MO124487997/0	Cotter Pin	Out of stock	£1.49 £1.24
26	MO325670010/0	Antifriction Washer	Out of stock	£1.42 £1.18
27	MO125033109/0	Connecting Rod	In stock	£8.64 £7.20
29	MO382318293/1	Axle	Out of stock	£11.92 £9.93
34	MO325670008/1	Washer	In stock	£1.63 £1.36
35	MO125510170/0	Pin From S.N 19EA3RON001208	Out of stock	£5.15 £4.29
35	MO125510107/1	Pin To S.N 19KA3RON005043	Out of stock	£5.02 £4.18
36	MO112156602/0	Nut	In stock	£1.36 £1.13
37	MO112295200/0	Nut	Out of stock	£1.49 £1.24
38	MO125840012/1	Tie Rod	Out of stock	£13.08 £10.90
41	MO124487998/0	Cotter Pin	In stock	£1.48 £1.23
44	MO112521360/0	Washer M10 10.5 X 20 X 2	In stock	£1.63 £1.36
