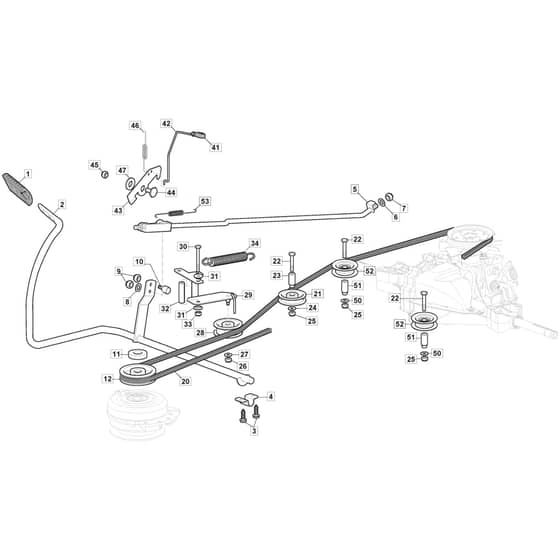

1530H - 2020-2021 - 2T2120483/M20 - Mountfield Ride On Mower Controls Diagram

1530H - 2020-2021 - 2T2120483/M20 - Mountfield Ride On Mower Controls Diagram
1530H - 2020-2021 - 2T2120483/M20 - Mountfield Ride On Mower Controls Diagram

Description

Mountfield 1530H Parts Diagram

Product Name - 1530 H

Model Year - 2020-2021

Model Type - MPNS 84 Hydro

Art.N - 2T2120483/M20

Engine Model - ST 500

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Clamp Cover MO325110409/0
Clamp Cover
 Out of stock
£6.91 £5.76

  2 Pedal MO382000641/1
Pedal
 Out of stock
£50.11 £41.76

  3 Screw MO112735599/0
Screw
 Out of stock
£1.49 £1.24

  4 Plate MO325547231/1
Plate
 Out of stock
£4.20 £3.50

  5 Rod To 07-11-2021 MO382000636/0
Rod To 07-11-2021
 Out of stock
£28.44 £23.70

  5 Brake Rod Assy From 08-11-2021 MO382000636/1
Brake Rod Assy From 08-11-2021
 Out of stock
£27.60 £23.00

  6 Washer MO112521360/0
Washer
 In stock
£1.63 £1.36

  7 Nut MO112156602/0
Nut
 In stock
£1.36 £1.13

  8 Antifriction Washer MO325670011/0
Antifriction Washer
 Out of stock
£1.49 £1.24

  10 Pin MO125510166/0
Pin
 Out of stock
£3.38 £2.82

  11 Spacer MO125160021/0
Spacer
 Out of stock
£5.63 £4.69

  12 Pulley MO125601577/0
Pulley
 Out of stock
£43.33 £36.11

  20 Trapezoidal Belt MO135062020/1
Trapezoidal Belt
 In stock
£39.72 £33.10

  21 Pulley (Plastic) MO125601613/0
Pulley (Plastic)
 Out of stock
£11.64 £9.70

  21 Pulley (Steel) MO325601599/0
Pulley (Steel)
 In stock
£17.52 £14.60

  22 Screw MO112691400/0
Screw
 Out of stock
£1.49 £1.24

  23 Spacer MO125160107/0
Spacer
 Out of stock
£2.70 £2.25

  24 Washer MO112523060/0
Washer
 In stock
£1.49 £1.24

  25 Nut MO112155000/0
Nut
 Out of stock
£1.63 £1.36

  28 Pulley MO125601554/0
Pulley
 In stock
£23.40 £19.50

  29 Tightener Lever MO382318245/1
Tightener Lever
 Out of stock
£18.96 £15.80

  30 Screw MO112691600/0
Screw
 Out of stock
£1.75 £1.46

  31 Bushing MO125038021/0
Bushing
 Out of stock
£1.21 £1.01

  32 Spacer MO125160027/0
Spacer
 Out of stock
£2.44 £2.03

  34 Spring MO125430262/0
Spring
 Out of stock
£5.54 £4.62

  41 Knob MO125394509/1
Knob
 In stock
£2.44 £2.03

  42 Rod MO125033113/0
Rod
 Out of stock
£3.38 £2.82

  43 Hook MO325253011/1
Hook
 Out of stock
£3.53 £2.94

  44 Pin MO122524970/3
Pin
 Out of stock
£1.63 £1.36

  46 Spring MO125430213/0
Spring
 Out of stock
£1.63 £1.36

  50 Washer MO112521350/0
Washer
 Out of stock
£1.63 £1.36

  51 Spacer MO125160111/0
Spacer
 Out of stock
£4.07 £3.39

  52 Pulley (Steel) MO125601612/0
Pulley (Steel)
 In stock
£32.76 £27.30

  53 Spring MO125430269/2
Spring
 Out of stock
£2.30 £1.92


Description

Mountfield 1530H Parts Diagram

Product Name - 1530 H

Model Year - 2020-2021

Model Type - MPNS 84 Hydro

Art.N - 2T2120483/M20

Engine Model - ST 500
