1530H - 2015-2019 - 2T2120483/M15 - Mountfield Ride On Mower Controls Diagram

Name: 1530H - 2015-2019 - 2T2120483/M15 - Mountfield Ride On Mower Controls Diagram
SKU: 1530h_2t2120483_m15_controls-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1530H - 2015-2019 - 2T2120483/M15 - Mountfield Ride On Mower Controls Diagram

Description

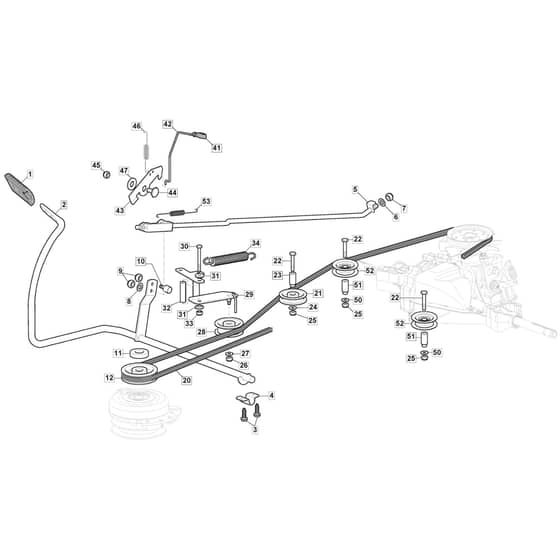

Mountfield 1530H Parts Diagram

Product Name - 1530 H

Model Year - 2015-2019

Model Type - MP 84 Hydro

Art.N - 2T2120483/M15

Engine Model - 7750 452cc

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325110409/0 Available to backorder	Clamp Cover	£7.19 £5.99
2	MO382000641/1 Available to backorder	Pedal	£52.08 £43.40
3	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
4	MO325547231/1 Available to backorder	Plate	£4.37 £3.64
5	MO382000636/0 Available to backorder	Rod	£29.56 £24.63
6	MO112521360/0 In stock	Washer	£1.55 £1.29
7	MO112156602/0 In stock	Nut	£1.40 £1.17
8	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
10	MO125510166/0 Available to backorder	Pin From S.N 19DA3RON003315	£3.52 £2.93
10	MO125510116/0 Available to backorder	Pin To S.N 19DA3RON003314	£3.67 £3.06
11	MO125160021/0 Available to backorder	Spacer	£5.63 £4.69
12	MO125601577/0 Available to backorder	Pulley	£45.04 £37.53
20	MO135062020/1 In stock	Trapezoidal Belt	£43.08 £35.90
21	MO325601599/0 In stock	Pulley Bearing hole ø15 From 01-9-2013	£19.14 £15.95
21	MO125601555/0 In stock	Pulley Bearing hole ø16 To 31-8-2013	£29.28 £24.40
22	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
23	MO125160107/0 Available to backorder	Spacer	£2.81 £2.34
24	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
25	MO112155000/0 In stock	Nut	£1.55 £1.29
28	MO125601554/0 In stock	Pulley	£25.68 £21.40
29	MO382318245/1 Available to backorder	Lever	£19.70 £16.42
30	MO112691600/0 Available to backorder	Screw	£1.82 £1.52
31	MO125038021/0 Available to backorder	Bushing From 01-9-2016	£1.26 £1.05
31	MO125038002/1 In stock	Bushing To 31-8-2016	£1.55 £1.29
32	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
34	MO125430262/0 Available to backorder	Spring	£5.76 £4.80
41	MO125394509/1 In stock	Knob From 01-9-2013	£2.44 £2.03
41	MOREPLA0000050 Available to backorder	Knob	£5.82 £4.85
42	MO125033113/0 Available to backorder	Rod From 01-9-2013	£3.38 £2.82
43	MO325253011/1 Available to backorder	Hook	£3.67 £3.06
44	MO122524970/2 Available to backorder	Fulcrum Pin To 31-8-2014	£1.90 £1.58
44	MO122524970/3 Available to backorder	Pin From 01-9-2014	£1.69 £1.41
46	MO125430213/0 Available to backorder	Spring	£1.69 £1.41
50	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
51	MO125160111/0 Available to backorder	Spacer	£4.22 £3.52
52	MO125601612/0 In stock	Pulley	£32.76 £27.30
53	MO125430269/2 Available to backorder	Hydro Brake Pedal Spring	£2.40 £2.00
