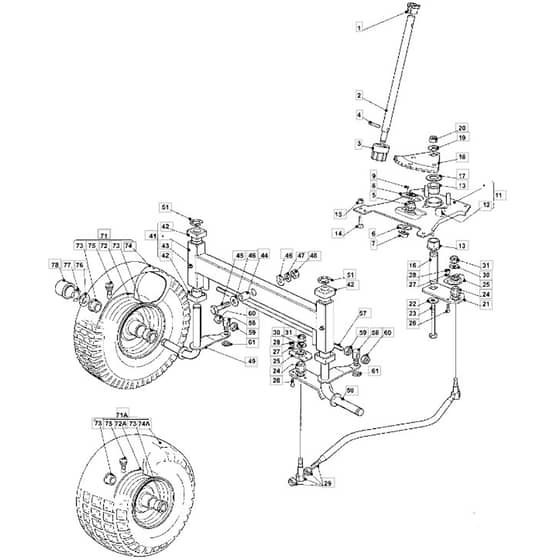

14H36H - 2007 - 13-2685-12 - Mountfield Ride On Mower Steering Diagram

Description

Mountfield 14H36H Parts Diagram

Product Name - 14H36H

Model Year - 2007

Model Type - JTP 92 Hydro

Art.N - 13-2685-12

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325038004/0 Out of stock	Bushing	£2.30 £1.92
2	MO125520006/1 Out of stock	Steering Column	£20.72 £17.27
3	MO127570050/0 Out of stock	Pinion	£10.70 £8.92
4	MO112622650/0 Out of stock	Dowel Pin	£1.80 £1.50
6	MO112521370/0 Out of stock	Washer	£1.49 £1.24
7	MO112436030/0 Out of stock	Plate	£1.75 £1.46
9	MO112729601/1 Out of stock	Screw	£1.48 £1.23
11	MO382547045/0 Out of stock	Support Pos 12 incl.	£74.50 £62.08
12	MO112379511/0 Out of stock	Grease Dispenser	£1.49 £1.24
13	MO325040624/0 Out of stock	Bushing	£1.63 £1.36
14	MO112815200/0 In stock	Screw	£1.63 £1.36
15	MO112292102/0 In stock	Nut	£1.80 £1.50
16	MO125510092/0 Out of stock	Pin	£18.42 £15.35
17	MO125670019/0 Out of stock	Washer	£3.25 £2.71
18	MO325735513/0 In stock	Steering Sector	£12.96 £10.80
19	MO112523080/0 In stock	Washer	£1.63 £1.36
20	MO112155020/0 Out of stock	Nut	£1.63 £1.36
21	MO325318205/0 Out of stock	Lever	£5.54 £4.62
23	MO112794985/0 Out of stock	Screw	£3.92 £3.27
24	MO325743000/0 Out of stock	Joint	£2.58 £2.15
26	MO112791213/1 Out of stock	Screw	£1.63 £1.36
27	MO112521330/0 Out of stock	Washer	£1.49 £1.24
28	MO112154510/0 In stock	Nut	£1.63 £1.36
30	MO112523070/0 Out of stock	Washer	£1.49 £1.24
31	MO112155010/0 Out of stock	Nut	£2.04 £1.70
42	MO325040622/0 Out of stock	Bushing	£3.25 £2.71
44	MO125160016/1 Out of stock	Spacer	£5.96 £4.97
45	MO112692695/0 Out of stock	Screw	£1.49 £1.24
46	MO112523100/0 Out of stock	Washer	£1.90 £1.58
47	MO112587100/0 Out of stock	Grower	£1.49 £1.24
48	MO112295300/0 Out of stock	Nut	£1.49 £1.24
49	MO382230363/0 Out of stock	Right Stub Axle	£66.37 £55.31
50	MO382230365/0 Out of stock	Left Stub Axle	£75.85 £63.21
51	MO112001000/0 Out of stock	Benzing Ring	£1.75 £1.46
57	MO125840022/0 Out of stock	Tie Rod	£84.10 £70.08
58	MO125510096/0 Out of stock	Pin	£4.60 £3.83
59	MO112295200/0 Out of stock	Nut	£1.49 £1.24
60	MO112156602/0 In stock	Nut	£1.36 £1.13
61	MO112000956/0 Out of stock	Benzing Ring	£1.36 £1.13
71	MO382680002/2 Out of stock	Front Wheel Turf Saver 13"	£92.11 £76.76
71	MO382680007/1 Out of stock	71A Front Wheel Starco 15"	£123.25 £102.71
72	MO182000595/1 Out of stock	72A Rim	£62.38 £51.98
72	MO182000590/1 Out of stock	Rimm	£66.37 £55.31
73	MO125122200/2 Out of stock	Bearing	£10.80 £9.00
74	MO125590020/0 Out of stock	74A Tyre 15X6.00-6 2Pr K383 Kenda Kenda	£66.37 £55.31
74	MO125590018/0 Out of stock	Shoe Deli Tire 13X5.00-6 Pr2 Tl S365	£44.44 £37.03
75	MO125950000/0 Out of stock	Valve	£4.92 £4.10
76	MO125670005/2 Out of stock	Washer	£3.92 £3.27
78	MO122110230/0 Out of stock	Hub Cover	£1.63 £1.36
