14H36H - 2007 - 13-2685-12 - Mountfield Ride On Mower Engine Diagram

Description

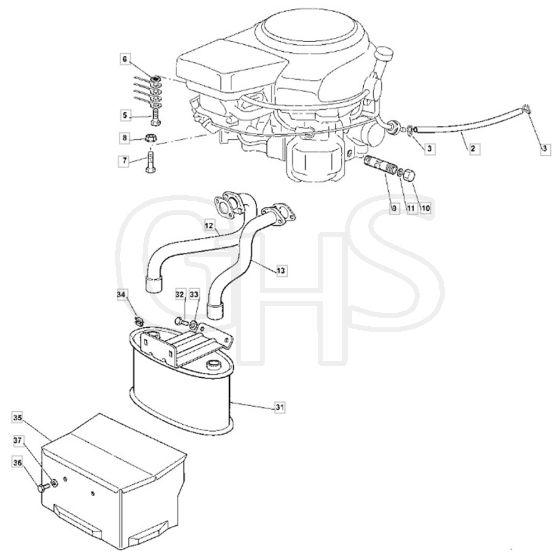

Mountfield 14H36H Parts Diagram

Product Name - 14H36H

Model Year - 2007

Model Type - JTP 92 Hydro

Art.N - 13-2685-12

	Part No.	Details
1	MO325869057/0 Available to backorder	Fuel Tube	£20.56 £17.13
3	MO118375062/0 Available to backorder	Fair Led	£1.92 £1.60
5	MO112735599/0 In stock	Screw	£1.55 £1.29
7	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
8	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
10	MO118737849/0 Available to backorder	Plug	£2.53 £2.11
11	MO118401001/1 Available to backorder	Oil Seal	£1.55 £1.29
12	MO118738221/0 Available to backorder	Right Exhaust Connection Tube	£92.90 £77.42
13	MO118738222/0 Available to backorder	Left Exhaust Connection Tube	£91.50 £76.25
31	MO182750003/0 Available to backorder	Muffler Assy	£265.02 £220.85
32	MO112793102/0 In stock	Screw	£1.55 £1.29
33	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
34	MO112360425/0 Available to backorder	Nut	£1.92 £1.60
35	MO382598005/2 Available to backorder	Muffler Protection	£40.82 £34.02
36	MO112792611/0 In stock	Screw	£1.55 £1.29
37	MO112583500/0 In stock	Washer M8 Uni 1751 Wz	£1.55 £1.29
