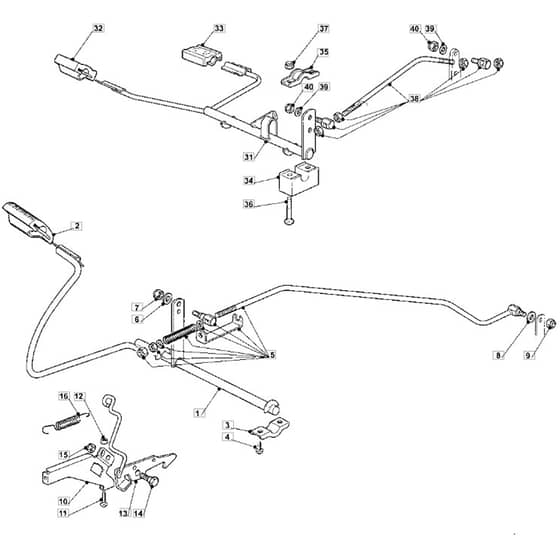

14H36H - 2007 - 13-2685-12 - Mountfield Ride On Mower Controls Diagram

Description

Mountfield 14H36H Parts Diagram

Product Name - 14H36H

Model Year - 2007

Model Type - JTP 92 Hydro

Art.N - 13-2685-12

	Part No.	Details
1	MO382500029/1 Available to backorder	Pedal	£67.42 £56.18
2	MO125110267/0 Available to backorder	Clamp Cover	£3.79 £3.16
3	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
4	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
5	MO382000542/1 Available to backorder	Control Rod	£39.42 £32.85
6	MO112521350/0 In stock	Washer	£1.55 £1.29
10	MO325785261/0 Available to backorder	Support	£6.64 £5.53
11	MO112815200/0 In stock	Screw	£1.55 £1.29
12	MO112292102/0 In stock	Nut	£1.70 £1.42
13	MO382000531/0 Available to backorder	Rod	£348.43 £290.36
14	MO122524970/2 Available to backorder	Fulcrum Pin	£1.90 £1.58
15	MO112155000/0 In stock	Nut	£1.55 £1.29
16	MO125430213/0 Available to backorder	Spring	£1.70 £1.42
32	MO325110274/0 Available to backorder	Clamp Cover Front	£7.19 £5.99
33	MO325110331/0 Available to backorder	Clamp Cover Rear	£7.02 £5.85
34	MO325785185/0 Available to backorder	Support	£3.66 £3.05
36	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
37	MO112154510/0 In stock	Nut	£1.55 £1.29
38	MO382000543/0 Available to backorder	Rod	£36.59 £30.49
39	MO112523040/0 In stock	Washer	£1.55 £1.29
