1440M - 2007 - 299911383/MO7 - Mountfield Ride On Mower B&S Engine Diagram

Description

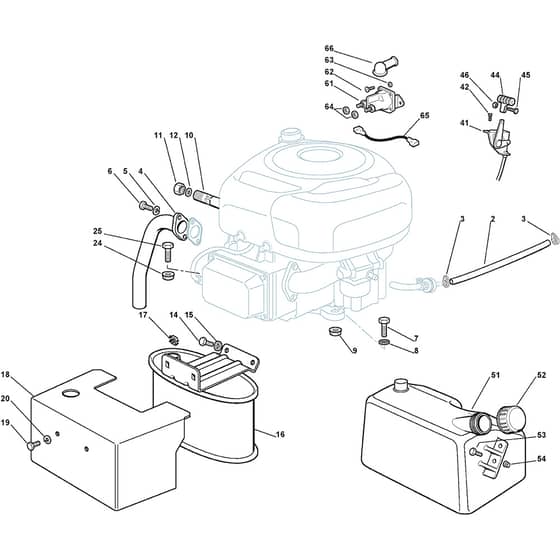

Mountfield 1440M Parts Diagram

Product Name - 1440M

Model Year - 2007

Model Type - TS102

Art.N - 299911383/MO7

Engine Model -

	Part No.	Details
1	MO325869016/1 Available to backorder	Fuel Pipe L300	£8.00 £6.67
3	MO118375062/0 Available to backorder	Fair Led	£1.92 £1.60
4	MO118738224/0 Available to backorder	Exhaust Pipe	£40.69 £33.91
6	MO112735530/0 Available to backorder	Screw	£1.84 £1.53
7	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
10	MO125598050/0 Available to backorder	Oil Discharge Extension	£8.00 £6.67
11	MO118737849/0 Available to backorder	Plug	£2.53 £2.11
12	MO118401001/1 Available to backorder	Oil Drain Seal	£1.55 £1.29
14	MO112793102/0 In stock	Screw	£1.55 £1.29
15	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
16	MO182750010/0 Available to backorder	Muffler	£123.89 £103.24
17	MO112360425/0 Available to backorder	Nut	£1.92 £1.60
18	MO382598009/2 Available to backorder	Muffler Protection	£42.22 £35.18
19	MO112792611/0 In stock	Screw	£1.55 £1.29
20	MO112583500/0 In stock	Grower	£1.55 £1.29
24	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
25	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
41	MO182000200/1 Available to backorder	Throttle Cable	£24.50 £20.42
42	MO125943012/0 Available to backorder	Screw	£1.55 £1.29
44	MO125394501/0 Available to backorder	Knob	£1.55 £1.29
45	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
46	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
51	MO125735110/3 Available to backorder	Tank From 01-9-2004	£53.71 £44.76
52	MO125795000/1 In stock	Fuel Cap	£7.74 £6.45
53	MO112788910/0 Available to backorder	Screw	£1.55 £1.29
54	MO112500092/0 Available to backorder	Rivet	£1.55 £1.29
61	MO118736113/0 In stock	Starter Relay	£38.00 £31.67
62	MO112791011/0 Available to backorder	Screw	£1.39 £1.16
63	MO112292102/0 In stock	Nut	£1.70 £1.42
64	MO9743-5121-32 Available to backorder	Nut	£1.46 £1.22
65	MO125065017/0 Available to backorder	Cable	£9.42 £7.85
66	MO118564861/2 In stock	Protection	£6.77 £5.64
