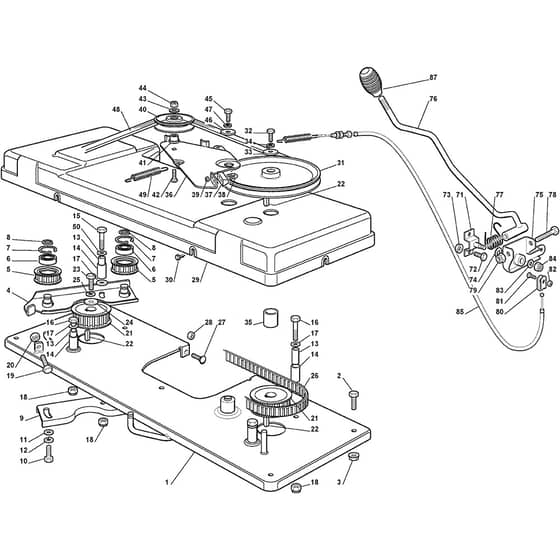

1440M - 2005 - 13-2653-15 - Mountfield Ride On Mower Deck Engagement Diagram

Name: 1440M - 2005 - 13-2653-15 - Mountfield Ride On Mower Deck Engagement Diagram
SKU: 1440m_13_2653_15_deck_engagement-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1440M - 2005 - 13-2653-15 - Mountfield Ride On Mower Deck Engagement Diagram

Description

Mountfield 1440M Parts Diagram

Product Name - 1440M

Model Year - 2005

Model Type - TCP 102

Art.N - 13-2653-15

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382547003/2 In stock	Transmission Plate	Was £94.81 £79.01 Special Price £61.86 £51.55
2	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
3	MO112293201/0 In stock	Nut	£1.69 £1.41
4	MO382785084/3 Available to backorder	Support	£32.38 £26.98
5	MO125601559/1 In stock	Toothed Pulley	£40.82 £34.02
6	MO119216048/0 In stock	Bearing	£18.31 £15.26
7	MO112610800/0 Available to backorder	Seeger	£1.69 £1.41
8	MO112609200/0 Available to backorder	Seeger	£1.55 £1.29
9	MO325650037/1 Available to backorder	Pulley Stiffening	£8.45 £7.04
13	MO125160003/2 Available to backorder	Spacer	£1.82 £1.52
14	MO125038000/0 Available to backorder	Bushing	£1.55 £1.29
15	MO112691700/0 In stock	Screw	£1.82 £1.52
16	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
17	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
19	MO112793900/0 Available to backorder	Screw	£1.55 £1.29
20	MO112293200/0 In stock	Nut	£1.55 £1.29
21	MO125601560/0 Available to backorder	Pulley	£54.90 £45.75
22	MO112139480/0 Available to backorder	Feather	£1.69 £1.41
26	MO135065605/0LC Available to backorder	Belt	£91.58 £76.32
27	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
28	MO112292102/0 In stock	Nut	£1.69 £1.41
29	MO325060128/0 Available to backorder	Case	£21.67 £18.06
30	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
31	MO125601550/0 Available to backorder	Pulley	£43.49 £36.24
33	MO125670007/0 In stock	Washer	£1.97 £1.64
34	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
35	MO125160002/1 Available to backorder	Spacer	£4.37 £3.64
36	MO325318115/2 Available to backorder	Lever	£24.84 £20.70
37	MO125207000/1 Available to backorder	Lining	£33.79 £28.16
38	MO125270317/0 Available to backorder	Fork	£9.34 £7.78
39	MO112154330/0 In stock	Nut	£1.55 £1.29
40	MO125601555/0 In stock	Pulley Bearing hole ø16	£29.28 £24.40
41	MO125160007/1 Available to backorder	Spacer From 01-9-2010	£3.24 £2.70
42	MO112818900/0 Available to backorder	Screw	£1.55 £1.29
43	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
44	MO112155000/0 In stock	Nut	£1.55 £1.29
45	MO112793102/0 In stock	Screw	£1.55 £1.29
46	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
48	MO135062813/1 In stock	Belt Kevlar	£39.05 £32.54
49	MO125430210/1 Available to backorder	Brake Spring	£2.68 £2.23
71	MO382774227/0 Available to backorder	Support	£18.84 £15.70
74	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
75	MO382774229/0 Available to backorder	Clamp Lever	£38.00 £31.67
76	MO182318177/1 Available to backorder	Lever	£30.83 £25.69
77	MO125430227/0 Available to backorder	Spring	£2.28 £1.90
78	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
80	MO322061337/0 Available to backorder	Connecting Plate	£1.55 £1.29
81	MO112791213/1 In stock	Screw From 01-9-2003	£1.55 £1.29
82	MO112154510/0 In stock	Nut	£1.55 £1.29
84	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
85	MO382004616/0 Available to backorder	Blades Engagement Wire	£29.56 £24.63
87	MO125394510/0 Available to backorder	Control Knob [Black]	£4.07 £3.39
