1440M - 2005 - 13-2653-15 - Mountfield Ride On Mower 102cm Deck Diagram

Description

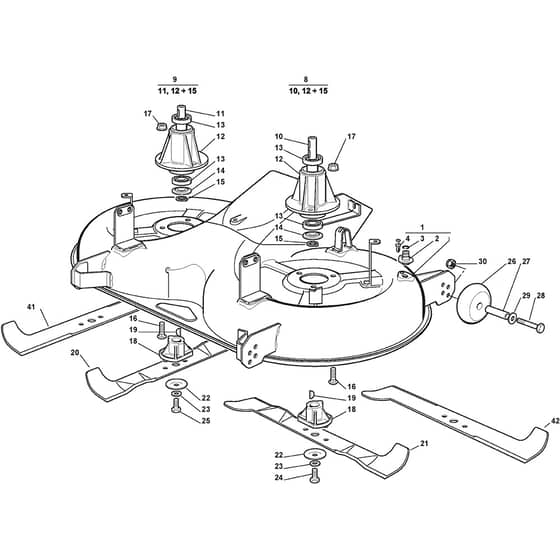

Mountfield 1440M Parts Diagram

Product Name - 1440M

Model Year - 2005

Model Type - TCP 102

Art.N - 13-2653-15

Engine Model -

	Part No.	Details
1	MO382565025/1 Available to backorder	Cutting Plate Assy	£541.97 £451.64
2	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.55 £1.29
3	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
4	MO112500030/0 In stock	Rivet	£1.55 £1.29
8	MO382207200/2LC Available to backorder	Main Blade Shaft Ass.Y	£101.34 £84.45
9	MO382207201/3LC In stock	Secondary Blade Shaft Ass.Y	£91.50 £76.25
10	MO125020800/1 Available to backorder	Main Blade Shaft	£46.48 £38.73
11	MO125020801/2 Available to backorder	Secondary Blade Shaft	£43.07 £35.89
12	MO125207200/0 In stock	Blade Shaft Support	Was £50.68 £42.23 Special Price £33.46 £27.88
13	MO119216047/0 In stock	Bearing	£15.78 £13.15
14	MO325160501/1 Available to backorder	Dust Cover Disc	£1.55 £1.29
15	MO112609260/0 In stock	Seeger	£1.84 £1.53
16	MO112818700/0 In stock	Screw	£1.55 £1.29
17	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
18	MO125463200/0 In stock	Blade Holder	£9.07 £7.56
19	MO112139100/0 In stock	Key	£1.55 £1.29
20	MO182004348/0 In stock	Right Mulching Blade. Winged	£27.89 £23.24
21	MO182004347/0 In stock	Left Mulching Blade. Winged	£27.89 £23.24
22	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
23	MO112523080/0 In stock	Washer	£1.55 £1.29
24	MO112735694/0 In stock	Screw	£1.97 £1.64
25	MO112735695/1 In stock	Screw	£3.79 £3.16
26	MO182700001/0 In stock	Levelling Small Wheel From 01-9-2006	£5.47 £4.56
27	MO125510072/1 In stock	Pin	£1.84 £1.53
28	MO112692050/0 In stock	Screw	£1.84 £1.53
29	MO112523060/0 In stock	Washer	£1.55 £1.29
30	MO112293201/0 In stock	Nut	£1.70 £1.42
41	MO182004341/1 In stock	Right Blade. Winged	£26.66 £22.22
42	MO182004340/1 In stock	Left Winged Blade 102cm Tc.Tcp	£26.66 £22.22
