1440M - 2004 - 299911333/MOE - Mountfield Ride On Mower Cutting plate lifting Diagram

Name: 1440M - 2004 - 299911333/MOE - Mountfield Ride On Mower Cutting plate lifting Diagram
SKU: 1440m_299911333_moe_cutting_plate_lifting-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

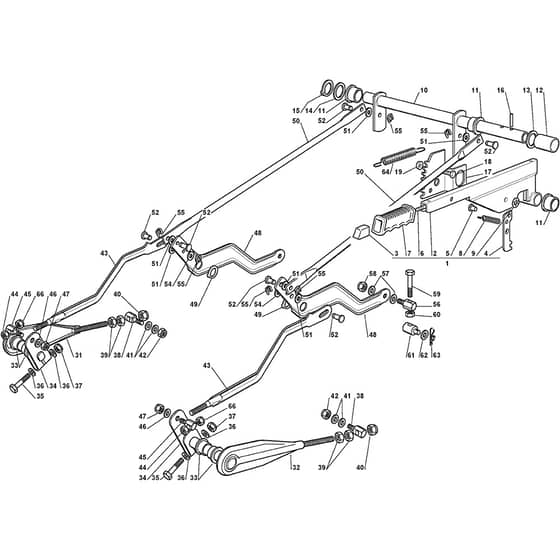

1440M - 2004 - 299911333/MOE - Mountfield Ride On Mower Cutting plate lifting Diagram

Description

Mountfield 1440M Parts Diagram

Product Name - 1440M

Model Year - 2004

Model Type - TCP 102

Art.N - 299911333/MOE

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382300002/1 Available to backorder	Lever	£60.54 £50.45
2	MO382318139/1 Available to backorder	Deck Lifting Lever	£40.82 £34.02
3	MO125605000/1 Available to backorder	Button	£2.26 £1.88
5	MO125510011/1 Available to backorder	Pin	£1.55 £1.29
6	MO125033002/1 Available to backorder	Push Rod	£4.22 £3.52
7	MO125394504/1 Available to backorder	Knob	£2.53 £2.11
8	MO125430208/1 Available to backorder	Spring	£3.52 £2.93
9	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
10	MO382000479/2 Available to backorder	Axle From 01-9-2007	£40.42 £33.68
11	MO122034523/0 Available to backorder	Bushing	£1.55 £1.29
66	MO112293200/0 In stock	Hexagon Nut M8 Uni 5588 Acc.6S	£1.55 £1.29
