1440M - 2004 - 13-2653-14 - Mountfield Ride On Mower 102cm Deck Diagram

Name: 1440M - 2004 - 13-2653-14 - Mountfield Ride On Mower 102cm Deck Diagram
SKU: 1440m_13_2653_14_102cm_deck-group
Price: 1.29 GBP
Availability: InStock

Part No. 1440m_13_2653_14_102cm_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1440M - 2004 - 13-2653-14 - Mountfield Ride On Mower 102cm Deck Diagram

Description

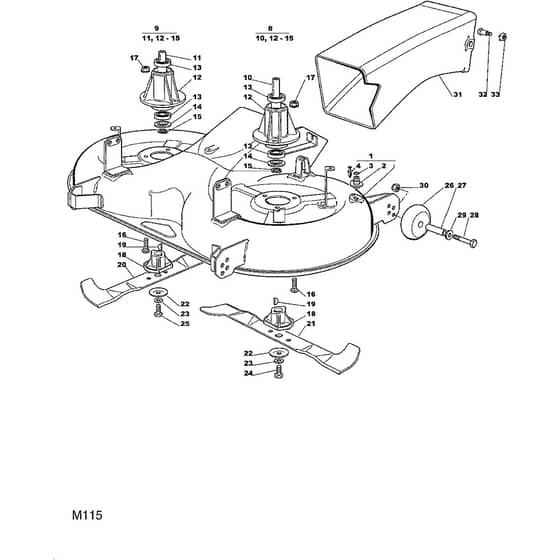

Mountfield 1440M Parts Diagram

Product Name - 1440M

Model Year - 2004

Model Type - TC 102

Art.N - 13-2653-14

Engine Model -

	Part No.	Details
1	MO382565025/1 Available to backorder	Mower Deck Casing	£541.97 £451.64
2	MO125033060/0 In stock	Water Hose Connection	£1.55 £1.29
3	MO119035000/0 Available to backorder	O-Ring	£5.06 £4.22
4	MO112500030/0 In stock	Rivet	£1.55 £1.29
8	MO382207200/2LC Available to backorder	Bearing Box Assy (Main) Pos 10. 12 - 15 incl.	£101.34 £84.45
9	MO382207201/3LC In stock	Bearing Box Assy (Secondary) Pos 11. 12 - 15 incl.	£91.50 £76.25
10	MO125020800/1 Available to backorder	Blade Shaft	£46.48 £38.73
11	MO125020801/2 Available to backorder	Blade Shaft	£43.07 £35.89
13	MO119216047/0 In stock	Ball Bearing	£15.78 £13.15
14	MO325160501/1 Available to backorder	Dust Cover	£1.55 £1.29
15	MO112609260/0 In stock	Circlip	£1.84 £1.53
16	MO112818700/0 In stock	Screw	£1.55 £1.29
18	MO125463200/0 In stock	Blade Hub	£9.07 £7.56
19	MO112139100/0 In stock	Key	£1.55 £1.29
20	MO182004348/0 In stock	Blade-Rh	£27.89 £23.24
21	MO182004347/0 In stock	Blade-Lh	£27.89 £23.24
22	MO122160400/0 In stock	Elastic Washer	£1.84 £1.53
23	MO112523080/0 In stock	Washer	£1.55 £1.29
24	MO112735694/0 In stock	Screw	£1.97 £1.64
25	MO112735695/1 In stock	Blade Bolt (Lh-Thread)	£3.79 £3.16
26	MO182700002/0 Available to backorder	Anti Scalp Wheel	£4.78 £3.98
27	MO125510072/1 In stock	Spacer	£1.84 £1.53
28	MO112692050/0 In stock	Screw	£1.84 £1.53
29	MO112523060/0 In stock	Washer	£1.55 £1.29
30	MO112293201/0 In stock	Nut	£1.70 £1.42
31	MO325108009/1 Available to backorder	Discharge Chute	£71.80 £59.83
32	MO125510051/1 Available to backorder	Pin Bolt	£4.19 £3.49
33	MO112360425/0 Available to backorder	Square Nut	£1.92 £1.60
