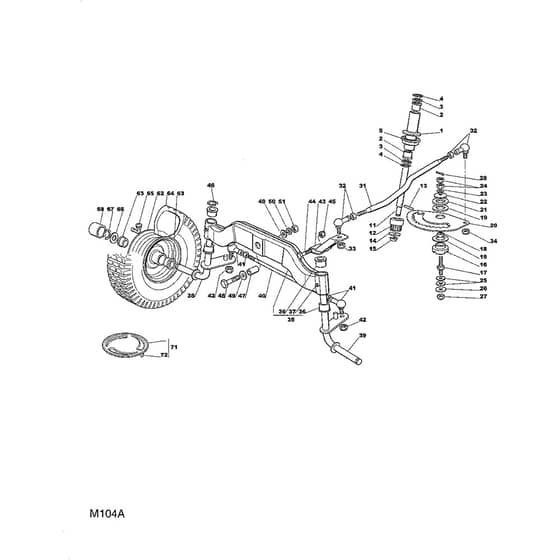

1440M - 2003 - 13-2653-13 - Mountfield Ride On Mower Steering Diagram

Name: 1440M - 2003 - 13-2653-13 - Mountfield Ride On Mower Steering Diagram
SKU: 1440m_13_2653_13_steering-group
Price: 1.16 GBP
Availability: InStock

Part No. 1440m_13_2653_13_steering-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1440M - 2003 - 13-2653-13 - Mountfield Ride On Mower Steering Diagram

Description

Mountfield 1440M Parts Diagram

Product Name - 1440M

Model Year - 2003

Model Type - TC 102

Art.N - 13-2653-13

Engine Model -

	Part No.	Details
3	MO125670006/0 Available to backorder	Washer	£1.63 £1.36
5	MO125040602/0 Available to backorder	Bushing	£15.76 £13.13
11	MO125520002/1 Available to backorder	Steering Column	£56.32 £46.93
12	MO125570000/2 Available to backorder	Steering Pinion	£12.80 £10.67
13	MO9595-0262-00 In stock	Locating Pin	£1.79 £1.49
14	MO112521370/0 Available to backorder	Washer	£1.63 £1.36
15	MO112436030/0 In stock	Lock Plate	£1.84 £1.53
16	MO125040617/0 Available to backorder	Bushing	£10.72 £8.93
17	MO125510065/3 Available to backorder	Stud Bolt	£10.30 £8.58
19	MO325670012/0 Available to backorder	Washer	£2.40 £2.00
20	MO325735507/0 Available to backorder	Steering Sector	£69.68 £58.07
21	MO325670014/1 Available to backorder	Washer	£4.45 £3.71
22	MO122160400/0 In stock	Elastic Washer	£1.84 £1.53
23	MO112521360/0 In stock	Washer	£1.55 £1.29
24	MO112295200/0 In stock	Nut	£1.39 £1.16
25	MO322672150/0 Available to backorder	Washer	£1.92 £1.60
26	MO112523080/0 In stock	Washer	£1.55 £1.29
31	MO125033003/1 Available to backorder	Steering Rod	£39.42 £32.85
35	MO382034001/3 Available to backorder	Front Wheel Axle Pos 36. 37 incl.	£175.97 £146.64
36	MO125034002/1 Available to backorder	Bushing	£3.79 £3.16
37	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
38	MO382230349/0 Available to backorder	Stub Axle-R	£78.85 £65.71
39	MO382230348/0 Available to backorder	Stub Axle-L	£80.22 £66.85
40	MO325840001/1 Available to backorder	Tie Rod	£14.80 £12.33
41	MO122746609/0 Available to backorder	Ball Joint	£21.82 £18.18
42	MO112156602/0 In stock	Lock Nut	£1.39 £1.16
43	MO382318185/0 Available to backorder	Steering Arm	£24.37 £20.31
44	MO112692080/0 Available to backorder	Screw	£1.63 £1.36
45	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
47	MO125160005/1 Available to backorder	Spacer	£5.34 £4.45
48	MO112694100/0 Available to backorder	Screw	£4.08 £3.40
49	MO112521390/0 Available to backorder	Washer	£1.84 £1.53
50	MO112587900/0 Available to backorder	Washer	£1.55 £1.29
51	MO112295800/0 Available to backorder	Nut	£1.84 £1.53
62	MO182000590/1 Available to backorder	Rim-Front	£68.99 £57.49
63	MO125122200/2 In stock	Bearing	£11.82 £9.85
64	MO125590000/0 Available to backorder	Tire (Deli)	£39.97 £33.31
65	MO125950002/0 Available to backorder	Valve (90º)	£5.65 £4.71
66	MO125670005/2 In stock	Washer	£4.08 £3.40
67	MO112001000/0 Available to backorder	Circlip	£1.84 £1.53
68	MO122110230/0 In stock	Hub Cap	£1.55 £1.29
72	MO125430209/0 Available to backorder	Spring	£4.37 £3.64
