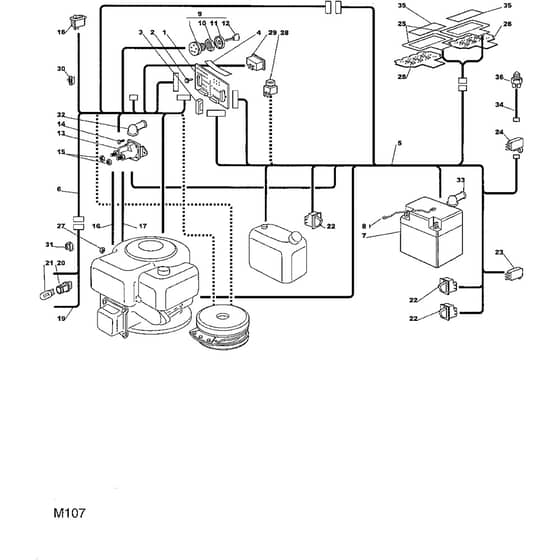

1440M - 2002 - 13-2653-12 - Mountfield Ride On Mower Electric Equipment Diagram

Name: 1440M - 2002 - 13-2653-12 - Mountfield Ride On Mower Electric Equipment Diagram
SKU: 1440m_13_2653_12_electric_equipment-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

1440M - 2002 - 13-2653-12 - Mountfield Ride On Mower Electric Equipment Diagram

Description

Mountfield 1440M Parts Diagram

Product Name - 1440M

Model Year - 2002

Model Type - TC 102

Art.N - 13-2653-12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
3	MO133340033/0 Out of stock	Fuse (6.3 A) 6.3 A	£4.48 £3.73
4	MO125420004/0 Out of stock	Check Control Panel 6 functions	£10.02 £8.35
4	MO125420005/0 Out of stock	Check Control Panel 8 functions	£11.10 £9.25
7	MO118120068/0 In stock	Battery	£109.19 £90.99
8	MO125430230/0 Out of stock	Spring	£3.65 £3.04
10	MO118400861/0 Out of stock	Nut	£5.82 £4.85
11	MO118565351/0 Out of stock	Bezel 121	£6.77 £5.64
12	MOMX835 Out of stock	Ignition Key	£12.66 £10.55
13	MO118736113/0 In stock	Solenoid	£34.68 £28.90
14	MO9997-0620-16 Out of stock	Screw	£1.49 £1.24
15	MO9743-5121-32 Out of stock	Nut	£1.36 £1.13
16	MO125065002/0 Out of stock	Cable Harness	£10.09 £8.41
17	MO125065003/0 Out of stock	Cable	£5.69 £4.74
18	MO118450084/0 Out of stock	Switch Head light	£4.33 £3.61
19	MO182040070/0 Out of stock	Cable	£16.25 £13.54
20	MO133500030/0 Out of stock	Lamp Holder	£3.65 £3.04
21	MO118459100/0 Out of stock	Bulb	£2.04 £1.70
22	MO119410622/1 In stock	Microswitch	£6.00 £5.00
23	MO119410605/1 Out of stock	Microswitch Full grass bag	£36.00 £30.00
26	MO325600055/1 Out of stock	Plate	£6.23 £5.19
27	MO112361005/0 Out of stock	Nut	£4.07 £3.39
29	MO118230000/0 Out of stock	Hour Counter	£148.99 £124.16
30	MO133320506/0 Out of stock	Cable Holder	£1.36 £1.13
31	MO133320504/0 Out of stock	Cable Holder	£1.90 £1.58
32	MO118564861/2 Out of stock	Protection	£6.50 £5.42
33	MO118564864/1 Out of stock	Protection	£5.69 £4.74
34	MO125065026/0 Out of stock	Cable	£8.27 £6.89
36	MO119410610/0 Out of stock	Neutral Switch Neutral	£51.47 £42.89
